charge output accel., high temp, 3 pc/g, to 6k hz, 10-32 side conn, 10-32 mount, to +900 f

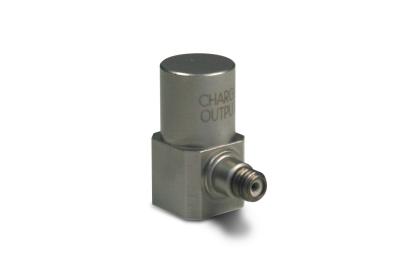

Charge Output Accelerometer

Model 357B69

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Charge output accel., high temp, 3 pC/g, to 6k Hz, 10-32 side conn, 10-32 mount, to +900 F

Replaces Legacy Models Endevco 2248, Endevco 2248M1, and Endevco 2273A.
  • Sensitivity: (±20%)3.5 pC/g (.357 pC/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (±5%)6000 Hz (6000 Hz)
  • Weight: 0.56 oz (16 gm)

Specification Notes

[1] Typical.
[2] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±20 %) 3.5 pC/g .357 pC/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) 6000 Hz 6000 Hz
Resonant Frequency ≥35 kHz ≥35 kHz
Non-Linearity ≤1 % ≤1 %
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±3000 g pk ±29420 m/s² pk
Temperature Range -65 to +900 °F -54 to +482 °C
Temperature Response See Graph %/°F See Graph %/°F [1]
Base Strain Sensitivity 0.002 g/µε 0.02 (m/s²)/µε [1]
Radiation Exposure Limit (Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1E8 rad 1E8 rad
Electrical
Capacitance 275 pF 275 pF [1]
Insulation Resistance (at 900°F [482°C]) >100 kohm >100 kohm
Insulation Resistance (at 70° F [21°C]) >1 GOhm >1 GOhm
Output Polarity Negative Negative
Physical
Sensing Geometry Compression Compression
Housing Material Inconel Inconel
Sealing Hermetic Hermetic
Size - Height .875 in 22.2 mm
Size - Diameter .45 in 11.4 mm
Weight 0.56 oz 16 gm [1]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 18 in-lb 2 Nm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
023A10 Hardline, mineral insulated, coaxial cable, 10-ft, 10-32 plug (900°F/482°C) to 10-32 jack (550°F/288°C) 1
081A107 Mounting stud, 10-32 to 10-32, 0.275" long, Inconel w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081A107 Mounting Stud, 10-32 to M6- 0.75, w/shoulder, Inconel 1
