Model : 357B61 | Charge Output Accelerometer

Click for lead times
Lead Time for 1-5 is 5 Wks
Lead Time for 6-10 is 6 Wks
$ 1,617.00 USD
(Pricing valid in US only!)

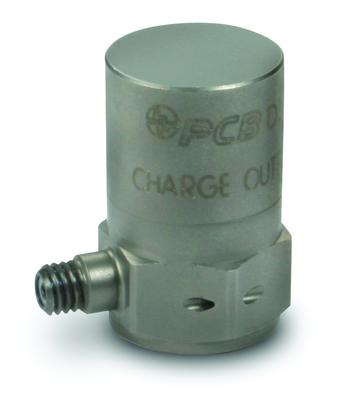

High temp., ceramic compression, charge output accel., 10 pC/g, 5kHz, 10-32 side conn. (-65F to +900F), supplied with 10-ft hardline cable

Replaces Legacy Model Endevco 2276

  • Sensitivity: (±10%)10 pC/g (1.02 pC/(m/s²))
  • Measurement Range: ±1000 g pk (±9810 m/s² pk)
  • Frequency Range: (±5%)5000 Hz
  • Weight: 1.1 oz (30 gm)

RELATED PRODUCTS



422E35

In-line charge converter, 1 mV/pC, +/-2.5V output, -5% frequency 5 Hz, for high temp sensors



Add to Cart for Quote
Add To Cart
422E36

In-line charge converter, 10 mV/pC, +/-2.5V output, -5% frequency 5 Hz, for high temp sensors



Add to Cart for Quote
Add To Cart
422E65/A

In-line charge converter, 1 mV/pC, +/-5V output, -5% frequency 5 Hz, 10-32 jack conn., Rad Hard



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±10 %) 10 pC/g 1.02 pC/(m/s²)
Measurement Range ±1000 g pk ±9810 m/s² pk
Frequency Range (±5 %) 5000 Hz 5000 Hz [2]
Resonant Frequency ≥24 kHz ≥24 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤3 % ≤3 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range -65 to +900 °F -54 to +482 °C
Temperature Range -65 to +900 °F -54 to +482 °C
Temperature Response See Graph See Graph [3]
Base Strain Sensitivity 0.007 g/µε 0.07 (m/s²)/µε [3]
Radiation Exposure Limit (Integrated Neutron Flux) 1 E10 N/cm² 1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1 E8 rad 1 E8 rad
Electrical
Capacitance 630 pF 630 pF [3]
Insulation Resistance (900° F [482° C]) >100 kohm >100 kohm
Insulation Resistance (at 70° F [21°C]) >100000000 Ohm >100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Compression Compression
Housing Material Inconel Inconel
Sealing Hermetic Hermetic
Size - Hex 5/8 in 5/8 in
Size - Height 1.0 in 25.4 mm
Weight 1.1 oz 30 gm [3]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.


Accessories


Supplied
023A10 Hardline, mineral insulated, coaxial cable, 10-ft, 10-32 plug to 10-32 jack 1
081A107 Mounting stud, 10-32 to 10-32, 0.275" long, Inconel w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081A107 Mounting Stud, 10-32 to M6- 0.75, w/shoulder, Inconel 1


Optional Versions


( P ) Positive Output Polarity
