uht-12™, charge output accel, high temp to to +900 f, 5 pc/g, 500 g, to 5 khz, 2-pin connector, 3-hole mount

HIGH TEMPERATURE ACCELEROMETER

Model 357A100

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

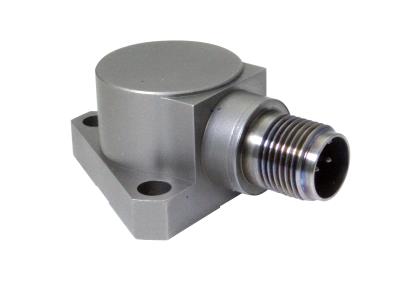

UHT-12™, Charge output accel, high temp to to +900 F, 5 pC/g, 500 g, to 5 kHz, 2-pin connector, 3-hole mount

UHT-12™ is a proprietary crystal designed for more accurate, lower noise measurements at elevated temperatures.
  • Sensitivity: (±5%)5.0 pC/g (.510 pC/(m/s²))
  • Measurement Range: ±200 g pk (±1962 m/s² pk)
  • Frequency Range: (+5%)4 kHz (4 kHz)
  • Weight: 2.32 oz (65.8 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] Low frequency response is determined by external signal conditioning electronics.
[2] Typical.
[5] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±5 %) 5.0 pC/g .510 pC/(m/s²)
Measurement Range ±200 g pk ±1962 m/s² pk
Frequency Range (+5 %) 4 kHz 4 kHz [4]
Frequency Range (+10 %) 5 kHz 5 kHz [4]
Resonant Frequency 20 kHz 20 kHz [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±1000 g pk ±9810 m/s² pk
Temperature Range -65 to +900 °F -54 to +482 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Capacitance (Pin to Pin) 120 pF 120 pF [2]
Capacitance (Pin to Case) 32 pF 32 pF [2]
Capacitance (Unbalance Between Pins) ≤2 pF ≤2 pF
Insulation Resistance ((Pin to Case 70°F) >1000000000 Ohm >1000000000 Ohm [2]
Insulation Resistance (Pin to Pin 70°F) >1000000000 Ohm >1000000000 Ohm
Insulation Resistance (Pin to Pin 900°F) >100 kohm >100 kohm
Output Polarity Differential Differential
Physical
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Shear Shear
Housing Material Inconel Inconel
Sealing Hermetic Hermetic
Size - Height 0.75 in 19 mm
Size - Diameter 1.5 in 38.1 mm
Size - Length 1.88 in 47.8 mm
Weight 2.32 oz 65.8 gm [2]
Electrical Connector 7/16-27 2-Pin 7/16-27 2-Pin
Electrical Connection Position Side Side
Mounting Through Holes (3) Through Holes (3)

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
081A99 Socket head cap screw, 8-32 x 0.5" long, 18-8 stainless steel 3
