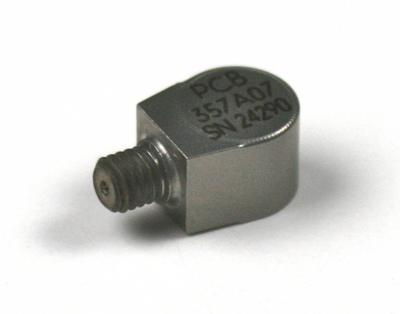

Model : 357A07 | Charge Output Accelerometer

Call for lead time
low outgassing, miniature, charge output accel., high temp 1.7 pc/g, 15khz, hermetic, titanium, m3 conn., to 500 f, with 10ft detachable cable
Add to Cart for Quote

Low outgassing, miniature, charge output accel., high temp 1.7 pC/g, 15kHz, hermetic, titanium, M3 conn., to 500 F, with 10ft detachable cable

This accelerometer features low out-gassing construction that is ideal for use in thermal vacuum chambers for environmental testing.

  • Sensitivity: (±20%)1.7 pC/g ( 0.17 pC/(m/s²))
  • Measurement Range: ±2000 g pk ( ±19620 m/s² pk)
  • Frequency Range: (+5%)15 kHz
  • Weight: 0.03 oz ( 0.96 gm)

RELATED PRODUCTS



357A07/NC
357A07/NC

Low outgassing, miniature, charge output accel., high temp 1.7 pC/g, 15kHz, hermetic, titanium, M3 conn., to 500 F, No Cable included



Add to Cart for Quote
Add to Quote
030B10
030B10

Miniature, low-noise, blue coaxial cable, 10-ft, M3 plug to 10-32 plug



Add to Cart for Quote
Add to Cart
039A28
039A28

Removal tool (for Model 352A24)



Add to Cart for Quote
Add to Cart
070A02
070A02

Scope input adaptor (10-32 jack to BNC plug)



Add to Cart for Quote
Add to Cart
080A194
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±20 %) 1.7 pC/g 0.17 pC/(m/s²)
Measurement Range ±2000 g pk ±19620 m/s² pk
Frequency Range (+5 %) 15 kHz 15 kHz [ 2]
Frequency Range (+10 %) 20 kHz 20 kHz [ 2]
Resonant Frequency ≥60 kHz ≥60 kHz
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range -100 to +500 °F -73 to +260 °C
Temperature Range -100 to 500 °F -73 to 260 °C
Temperature Response See Graph See Graph
Base Strain Sensitivity ≤0.10 g/µε ≤1.0 (m/s²)/µε [ 3]
Electrical
Capacitance 340 pF 340 pF [ 3]
Insulation Resistance (at 70° F [21°C]) >10000000000 Ohm >10000000000 Ohm
Output Polarity Negative Negative
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.195 in 4.9 mm
Size - Length 0.420 in 10.7 mm
Size - Width 0.250 in 6.4 mm
Weight 0.03 oz 0.96 gm [ 3]
Electrical Connector M3 Coaxial Jack M3 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Low frequency response is determined by external signal conditioning electronics.
[ 3] Typical.
[ 4] See PCB Declaration of Conformance PS081 for details.


Accessories


Supplied
030B10 Miniature, low-noise, blue coaxial cable, 10-ft, M3 plug to 10-32 plug 1
039A28 Removal tool (for Model 352A24) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions


( P ) Positive Output Polarity
