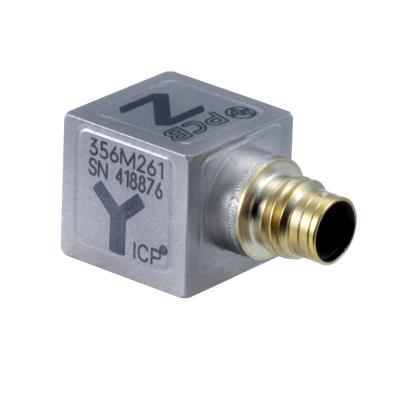

TRIAXIAL ACCELEROMETER, SPECIAL

Triaxial, ceramic shear ICP® accel., 4-40 int thread, 100 mV/g, 2 to 7k Hz, titanium hsg, 1/4-28 4-pin conn

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	100 mV/g	10.2 mV/(m/s²)
Measurement Range	±50 g pk	±490 m/s² pk
Frequency Range (±5 %)	0.7 to 7000 Hz	0.7 to 7000 Hz
Frequency Range (±10 %)	0.4 to 10000 Hz	0.4 to 10000 Hz
Resonant Frequency	≥45 kHz	≥45 kHz
Broadband Resolution (1)	0.0005	0.005 m/s² rms	[2]
Non-Linearity	≤1 %	≤1 %	[1]
Transverse Sensitivity	≤6 %	≤6 %
TEDS Compliant (Per IEEE 1451.4)	Yes	Yes
Environmental
Overload Limit (Shock)	±5000 g pk	±49050 m/s² pk
Temperature Range (Operating)	-65 to 185 °F	-54 to 85 °C
Temperature Response	See Graph	See Graph	[2]
Base Strain Sensitivity	.001 g/µε	.01 (m/s²)/µε	[2]
Electrical
Excitation Voltage	20 to 30 VDC	20 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	8 to 12 VDC	8 to 12 VDC
Discharge Time Constant	0.8 to 2.4 sec	0.8 to 2.4 sec
Settling Time (within 10% of bias)	≤5 sec	≤5 sec
Spectral Noise (1 Hz)	125 µg/√Hz	1226 (µm/sec²)/√Hz	[2]
Spectral Noise (10 Hz)	40 µg/√Hz	392 (µm/sec²)/√Hz	[2]
Spectral Noise (100 Hz)	15 µg/√Hz	147 (µm/sec²)/√Hz	[2]
Spectral Noise (1 kHz)	4 µg/√Hz	39.2 (µm/sec²)/√Hz	[2]
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Height	0.45 in	11.4 mm
Size - Length	0.83 in	21.2 mm
Size - Width	0.48 in	12.2 mm
Weight	0.22 oz	6.3 gm	[2]
Electrical Connection Position	Side	Side
Mounting	Stud	Stud
Mounting Thread	#4-40 Female	#4-40 Female

* All specifications are at room temperature unless otherwise specified.


Supplied
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
