triaxial, ceramic shear icp® accel., 2 x 4-40 int thread, 10 mv/g, 2 to 7k hz, titanium hsg, 1/4-28 4-pin conn

TRIAXIAL ACCELEROMETER, SPECIAL

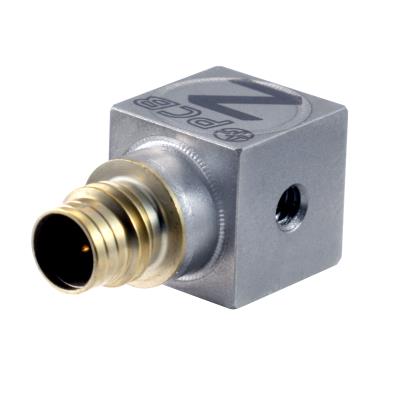

Model 356M259

Add to Quote
  • CE
  • IP

Triaxial, ceramic shear ICP® accel., 2 x 4-40 int thread, 10 mV/g, 2 to 7k Hz, titanium hsg, 1/4-28 4-pin conn


  • Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) (y or z axis) 2 to 10000 Hz 2 to 10000 Hz
Frequency Range (±5 %) (x axis) 2 to 7000 Hz 2 to 7000 Hz
Resonant Frequency ≥55 kHz ≥55 kHz
Broadband Resolution (1) 0.004 g rms 0.04 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.3 to 1.0 sec 0.3 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 1000 µg/√Hz 9810 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 300 µg/√Hz 2943 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.4 in 10.2 mm
Size - Length 0.77 in 19.6 mm
Size - Width 0.4 in 10.2 mm
Weight 0.19 oz 5.3 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread #4-40 Female #4-40 Female
Mounting Torque 4 to 5 in-lb 45 to 56 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(HT) High temperature, extends normal operation temperatures

English SI
Temperature Range -65 to +325 °F -54 to +163 °C
Temperature Range -65 to +325 °F -54 to +163 °C
