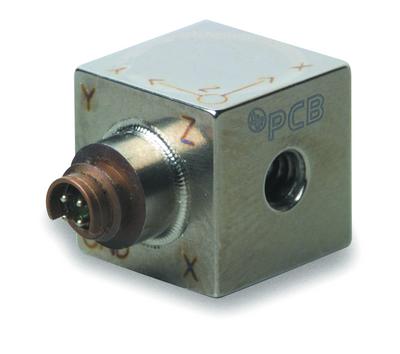

triaxial, miniature (4 gm), ceramic shear icp® accel., 1 mv/g, 2 to 7k hz, titanium hsg, mini 4-pin conn.

Accelerometer, ICP®, Triaxial

Model 356B20

$1,353.00 USD

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-5 is 8 Wks
Lead Time for 6-10 is 10 Wks

Triaxial, miniature (4 gm), ceramic shear ICP® accel., 1 mV/g, 2 to 7k Hz, titanium hsg, mini 4-pin conn.

  • Sensitivity: (±20%)1.0 mV/g (0.1 mV/(m/s²))
  • Measurement Range: ±5000 g pk (±49050 m/s² pk)
  • Electrical Connector: 8-36 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) 1.0 mV/g 0.1 mV/(m/s²)
Measurement Range ±5000 g pk ±49050 m/s² pk
Frequency Range (±5 %) (y or z axis) 2 to 10000 Hz 2 to 10000 Hz
Frequency Range (±5 %) (x axis) 2 to 7000 Hz 2 to 7000 Hz
Resonant Frequency ≥55 kHz ≥55 kHz
Broadband Resolution (1) 0.03 g rms 0.29 m/s² rms [2]
Non-Linearity ≤2.5 % ≤2.5 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±7000 g pk ±68600 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.5 to 3.0 sec 1.5 to 3.0 sec
Settling Time (within 10% of bias) <10 sec <10 sec
Spectral Noise (1 Hz) 9000 µg/√Hz 88290 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 2500 µg/√Hz 24525 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 800 µg/√Hz 7848 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 250 µg/√Hz 2453 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.4 in 10.2 mm
Size - Length 0.4 in 10.2 mm
Size - Width 0.4 in 10.2 mm
Weight 0.14 oz 4 gm [2]
Electrical Connector 8-36 4-Pin 8-36 4-Pin
Electrical Connection Position Side Side
Mounting Thread 5-40 Female 5-40 Female
Mounting Torque 4 to 5 in-lb 45 to 56 N-cm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
034K10 4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z) 1
080A Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
081A90 Mounting stud, 10-32 to 5-40 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081A27 Metric mtg stud, 5-40 to M3 x 0.50 long 1

Optional Versions


(HT) High temperature, extends normal operation temperatures

English SI
Temperature Range -65 to +325 -54 to +163

(J) Ground Isolated

English SI
Frequency Range (+5 %) 7 kHz 7
Resonant Frequency 50 50
Electrical Isolation >100000000
Size - Height 0.44 11.2
Size - Length 0.40 10.2
Size - Width 0.44 11.2
Weight 0.16 4.5
Mounting Adhesive
