Model : 356B18 | Triaxial ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 10 Wks
Lead Time for 11-20 is 12 Wks
platinum stock products; triaxial, high sensitivity, ceramic shear icp® accel., 1000 mv/g, 0.5 to 3k hz, 4-pin conn.
$ 1,207.00 USD
(Pricing valid in US only!)
5 units in stock

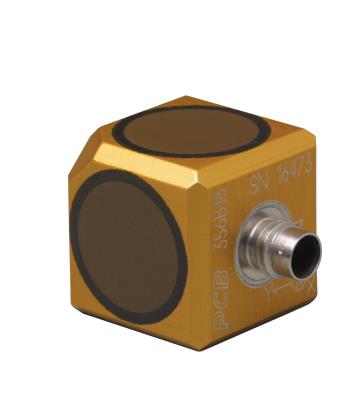

Platinum Stock Products; Triaxial, high sensitivity, ceramic shear ICP® accel., 1000 mV/g, 0.5 to 3k Hz, 4-pin conn.

  • Sensitivity: (±10%)1000 mV/g ( 102 mV/(m/s²))
  • Measurement Range: ±5 g pk ( ±49 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

RELATED PRODUCTS



034G10
034G10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add to Cart
034W10
034W10

4-conductor, twisted bundle, low noise, shielded, lightweight FEP cable, 10-ft, 1/4-28 4-socket plug, IP68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add to Cart
078G10
078G10

4-conductor, twisted bundle, low noise, shielded, flexible polyurethane cable, 10-ft, 1/4-28 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add to Cart
036G10
036G10

4-conductor, silicone jacket cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 1000 mV/g 102 mV/(m/s²)
Measurement Range ±5 g pk ±49 m/s² pk
Frequency Range (±5 %) 0.5 to 3000 Hz 0.5 to 3000 Hz
Frequency Range (±10 %) 0.3 to 5000 Hz 0.3 to 5000 Hz
Resonant Frequency ≥20 kHz ≥20 kHz
Broadband Resolution (1) 0.00005 g rms 0.0005 m/s² rms [ 2]
Phase Response (±5 °) (at 70°F [21°C]) 2 to 2000 Hz 2 to 2000 Hz
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±5000 g pk
Temperature Range (Operating) -20 to +170 °F -29 to +77 °C
Temperature Response See Graph %/°F See Graph %/°F
Base Strain Sensitivity 0.0007 g/µε 0.007 (m/s²)/µε [ 2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤600 Ohm ≤600 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.8 to 3.0 sec 0.8 to 3.0 sec
Settling Time (within 10% of bias) <12 sec <12 sec
Spectral Noise (1 Hz) 11.4 µg/√Hz 112 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 4.0 µg/√Hz 39 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 1.2 µg/√Hz 12 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 0.4 µg/√Hz 4.4 (µm/sec2)/√Hz [ 2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Anodized Aluminum Anodized Aluminum
Sealing Epoxy Epoxy
Size - Height 0.80 in 20.3 mm
Size - Length 1.03 in 26.1 mm
Size - Width 0.80 in 20.3 mm
Weight 0.88 oz 25 gm [ 2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A68 Adhesive mtg base, 0.875" hex x 0.2" thk, 10-32 tapped hole, aluminum w/ isolation hardcoat finish (for Models 356B07 & 356B08) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1


Optional Versions


( A ) Adhesive Mount
English SI
Mounting Thread None - Adhesive Mount Only


( J ) Ground Isolated
English SI
Electrical Isolation >100000000 Ohm
Size - Height 0.85 in 21.6 mm
Size - Length 1.03 in 26.1 mm
Size - Width 0.85 in 21.6 mm


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
English SI
Output Bias Voltage 8.5 to 13 VDC


( TLA ) TEDS LMS International - Free Format
English SI
Output Bias Voltage 8.5 to 13 VDC


( TLB ) TEDS LMS International - Automotive Format
English SI
Output Bias Voltage 8.5 to 13 VDC


( TLC ) TEDS LMS International - Aeronautical Format
English SI
Output Bias Voltage 8.5 to 13 VDC


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
English SI
Output Bias Voltage 8.5 to 13
