Model : 356A33 | Accelerometer, ICP®, Triaxial

Click for lead times
Lead Time for 1-10 is 3 Wks
Lead Time for 11-20 is 4 Wks
$ 1,125.00 USD
(Pricing valid in US only!)

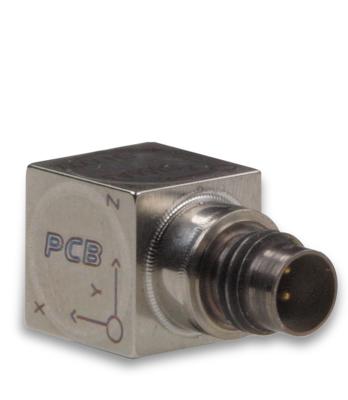

Platinum Stock Products; Triaxial, ceramic shear ICP® accel., 10 mV/g, 2 to 7k Hz, titanium hsg, 1/4-28 4-pin conn.

  • Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

RELATED PRODUCTS



010G10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add To Cart
034G10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add To Cart
034W10

4-conductor, shielded, lightweight, FEP cable, 10-ft, 4-socket plug, IP68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add To Cart
078G10

4-conductor, twisted shielded, Polyurethane cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
078W10

4-conductor, shielded, flexible, Polyurethane cable, 10-ft, 4-socket plug, IP-68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add To Cart
036G10

4-conductor, silicone jacket cable, 10-ft, 4-pin plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) (y or z axis) 2 to 10000 Hz 2 to 10000 Hz
Frequency Range (±5 %) (x axis) 2 to 7000 Hz 2 to 7000 Hz
Resonant Frequency ≥55 kHz ≥55 kHz
Broadband Resolution (1) 0.004 g rms 0.04 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2] [3]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.3 to 1.0 sec 0.3 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 1000 µg/√Hz 9810 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 300 µg/√Hz 2943 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 100 µg/√Hz 981 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.4 in 10.2 mm
Size - Length 0.77 in 19.6 mm
Size - Width 0.4 in 10.2 mm
Weight 0.19 oz 5.3 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 5-40 Female 5-40 Female
Mounting Torque 4 to 5 in-lb 45 to 56 N-cm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
081A90 Mounting stud, 10-32 to 5-40 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081A27 Metric mtg stud, 5-40 to M3 x 0.50 long 1


Optional Versions


( HT ) High temperature, extends normal operation temperatures
English SI
Temperature Range -65 to +325 °F -54 to +163 °C
