Model : 354A04 | Triaxial ICP® Accelerometer

Click for lead times
Lead Time for 1-5 is 7 Wks
Lead Time for 6-10 is 8 Wks
Add to Cart for Quote
Datasheet

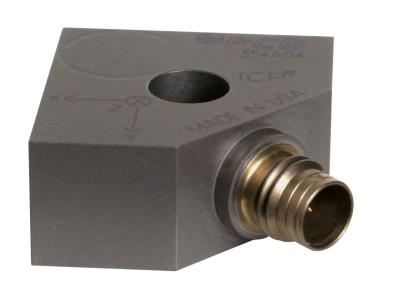

Triaxial, Thru-hole mtg, Ceramic shear ICP® accel, 10 mV/g, 0.4 to 5k Hz, Case isolated, TEDS V1.0, 4-pin connector

  • Sensitivity: (±5%)10.0 mV/g (1.02 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin (1/4-28 4-Pin)

RELATED PRODUCTS

M081A103

M3x0.5 threaded black-oxide alloy steel socket head cap screw with stainless steel washer (for series 3741)



Add to Cart for Quote
Add To Cart
010g10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add To Cart
034g10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add To Cart
078g10

4-conductor, twisted shielded, Polyurethane cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±5 %) 10.0 mV/g 1.02 mV/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) .4 to 5000 Hz .4 to 5000 Hz
Resonant Frequency ≥25 kHz ≥25 kHz
Broadband Resolution (1) .0005 g rms .005 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
TEDS Compliant (Per IEEE 1451.4) Yes Yes [3]
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity .004 g/µε .04 (m/s²)/µε [2]
Electrical
Excitation Voltage 24 to 30 VDC 24 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 1 to 3 sec 1 to 3 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 170 µg/√Hz 1668 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 25 µg/√Hz 245 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 8 µg/√Hz 78 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 6 µg/√Hz 59 (µm/sec2)/√Hz [2]
Spectral Noise (10 kHz) 4.0 µg/√Hz 39 (µm/sec2)/√Hz [2]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height .38 in 9.7 mm
Size - Length .82 in 20.7 mm
Size - Width .82 in 20.7 mm
Weight 0.51 oz 14.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Through Hole Through Hole
* All specifications are at room temperature unless otherwise specified
.


Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] TEDS Capable Digital Memory and Communication, compliant with IEEE 1451.4
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.


Accessories
Supplied
039A22 Allen wrench, 7/64" hex head (for use with 6-32 thd cap screws) 1
081A105 6-32 x 1/2 inch SHCS 18-8 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions

( M ) Metric Mount
Accessories:
Supplied M081A103 Accessory for Vibration Division Product 1
Supplied M039A22 Allen wrench for use with M3 thread 1
