high frequency, quartz shear icp® accel., 5 mv/g, 1 to 10k hz, 5-44 side conn.

Accelerometer, ICP®

Model 353B11

  • CE
  • IP

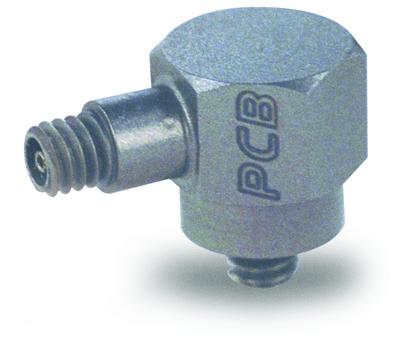

High frequency, quartz shear ICP® accel., 5 mV/g, 1 to 10k Hz, 5-44 side conn.

  • Sensitivity: (±10%)5 mV/g (0.51 mV/(m/s²))
  • Measurement Range: ±1000 g pk (±9810 m/s² pk)
  • Broadband Resolution: 0.01 g rms (0.1 m/s² rms)
  • Frequency Range: (±5%)1 to 10000 Hz
  • Sensing Element: Quartz
  • Weight: 0.07 oz (2.0 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 5 mV/g 0.51 mV/(m/s²)
Measurement Range ±1000 g pk ±9810 m/s² pk
Frequency Range (±5 %) 1 to 10000 Hz 1 to 10000 Hz
Frequency Range (±10 %) 0.7 to 18000 Hz 0.7 to 18000 Hz
Frequency Range (±3 dB) 0.35 to 30000 Hz 0.35 to 30000 Hz
Resonant Frequency ≥70 kHz ≥70 kHz
Broadband Resolution (1) 0.01 g rms 0.1 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity ≤0.005 g/µε ≤0.05 (m/s²)/µε [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.5 to 2.0 sec 0.5 to 2.0 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 6400 µg/√Hz 62784 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 1400 µg/√Hz 13734 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 360 µg/√Hz 3532 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 128 µg/√Hz 1256 (µm/sec2)/√Hz [2]
Physical
Size - Height 0.43 in 10.9 mm
Size - Hex 0.31 in 7.9 mm
Weight 0.07 oz 2.0 gm [2]
Sensing Element Quartz Quartz
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Electrical Connection Position Side Side
Mounting Thread 5-40 Male 5-40 Male
Mounting Torque 8 to 12 in-lb 90 to 135 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A15 Adhesive mtg base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/isolation hardcoat finish 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions


(A) Adhesive Mount
Accessories:
Supplied 080A90 Quick Bonding Gel 1

(B) Low bias electronics

English SI
Output Bias Voltage 4.5 to 7.5 VDC
Excitation Voltage 12 to 30 VDC
Constant Current Excitation 1 to 20 mA
Measurement Range 600 g pk 5886 m/s² pk

(J) Ground Isolated

English SI
Frequency Range 1 to 8000 Hz
Frequency Range 0.7 to 15000 Hz
Resonant Frequency 56 kHz
Electrical Isolation ≥100000000 Ohm
Size - Hex 0.37 in 9.5 mm
Size - Height 0.57 in 14.5 mm
Weight 0.11 oz 3.2 gm

(M) Metric Mount

English SI
Mounting Thread M3 x 0.50 Male

(Q) Extended discharge time constant

English SI
Frequency Range 0.15 to 10000 Hz
Frequency Range 0.1 to 20000 Hz
Discharge Time Constant >5 sec
Settling Time <45 sec

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
