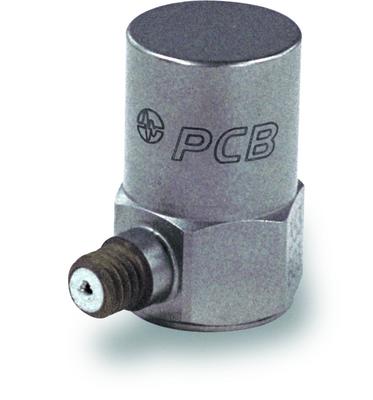

Model : 353B01 | ICP® Accelerometer

Click for lead times
general purpose, quartz shear icp® accel., 20 mv/g, 1 to 7k hz, 10-32 side conn.
Add to Cart for Quote

General purpose, quartz shear ICP® accel., 20 mV/g, 1 to 7k Hz, 10-32 side conn.

  • Sensitivity: (±5%)20 mV/g ( 2.04 mV/(m/s²))
  • Measurement Range: ±250 g pk ( ±2453 m/s² pk)
  • Broadband Resolution: 0.003 g rms ( 0.03 m/s² rms)
  • Frequency Range: (±5%)1 to 7000 Hz
  • Sensing Element: Quartz
  • Weight: 0.35 oz ( 10 gm)
English: SI:
Performance
Sensitivity (±5 %) 20 mV/g 2.04 mV/(m/s²) [ 4]
Measurement Range ±250 g pk ±2453 m/s² pk
Frequency Range (±5 %) 1 to 7000 Hz 1 to 7000 Hz
Frequency Range (±10 %) 0.7 to 10000 Hz 0.7 to 10000 Hz
Frequency Range (±3 dB) 0.35 to 18000 Hz 0.35 to 18000 Hz
Resonant Frequency ≥38 kHz ≥38 kHz
Broadband Resolution (1) 0.003 g rms 0.03 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 % [ 3]
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [ 2]
Base Strain Sensitivity ≤0.0005 g/µε ≤0.005 (m/s²)/µε [ 2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.5 to 2.6 sec 0.5 to 2.6 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 1600 µg/√Hz 15700 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 350 µg/√Hz 3433 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 90 µg/√Hz 883 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 32 µg/√Hz 314 (µm/sec2)/√Hz [ 2]
Physical
Size - Height 0.81 in 20.6 mm
Size - Hex 0.5 in 12.7 mm
Weight 0.35 oz 10 gm [ 2]
Sensing Element Quartz Quartz
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Transverse sensitivity is typically ≤ 3%.
[ 4] B and Q options supplied with a sensitivity tolerance of ± 10 %.
[ 2] Typical.
[ 5] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1


Optional Versions


( J ) Ground Isolated
English SI
Frequency Range 1 to 5000 Hz
Frequency Range 0.7 to 8000 Hz
Resonant Frequency 22 kHz
Electrical Isolation ≥100000000 Ohm
Size - Hex 0.50 in 12.7 mm
Size - Height 0.86 in 21.8 mm


( Q ) Extended discharge time constant
English SI
Discharge Time Constant >10 sec
Frequency Range 0.1 to 7000 Hz
Frequency Range 0.07 to 10000 Hz
Settling Time 45 sec


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
English SI
Output Bias Voltage 8.5 to 14.5 VDC
Size - Height .82 in 20.8 mm
Excitation Voltage 22 to 30 VDC
Sensitivity (&#177;10 %) 20 mV/g 2.04 mV/V/(m/s²)


( TLA ) TEDS LMS International - Free Format
English SI
Sensitivity (&#177;10 %) 20 mV/g 2.04 mV/V/(m/s²)
Output Bias Voltage 8.5 to 14.5 VDC
Size - Height .82 in 20.8 mm
Excitation Voltage 22 to 30 VDC


( TLB ) TEDS LMS International - Automotive Format
English SI
Output Bias Voltage 8.5 to 14.5 VDC
Size - Height .82 in 20.8 mm
Excitation Voltage 22 to 30 VDC
Sensitivity (&#177;10 %) 20 mV/g 2.04 mV/V/(m/s²)


( TLC ) TEDS LMS International - Aeronautical Format
English SI
Sensitivity (&#177;10 %) 20 mV/g 2.04 mV/V/(m/s²)
Output Bias Voltage 8.5 to 14.5 VDC
Size - Height .82 in 20.8 mm
Excitation Voltage 22 to 30 VDC


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
English SI
Size - Height .82 in 20.8 mm
Excitation Voltage 22 to 30 VDC
Output Bias Voltage 8.5 to 14.5 VDC
Sensitivity (&#177;10 %) 20 mV/g 2.04 mV/V/(m/s²)


( W ) Water Resistant Cable
English SI
Electrical Connection Position Side
