Model : 352A74 | ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 6 Wks
Lead Time for 11-20 is 7 Wks
Add to Cart for Quote

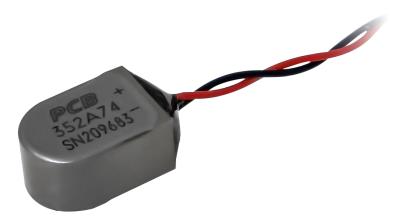

Miniature, lightweight (1.22 gm), ceramic shear ICP® accel., 100 mV/g, 1 to 8k Hz, titanium housing, 10-ft flexible, integral cable

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490 m/s² pk)
  • Broadband Resolution: 0.0002 g rms (0.002 m/s² rms)
  • Frequency Range: (±5%)1.0 to 8000 Hz
  • Sensing Element: Ceramic
  • Weight: (Without Cable)0.04 oz (1.22 gm)
Additional Configurations:

RELATED PRODUCTS



039a35

Removal tool (352A74)



Add to Cart for Quote
Add To Quote
070a02

Scope input adaptor (10-32 jack to BNC plug)



Add to Cart for Quote
Add To Cart
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add To Quote
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 1.0 to 8000 Hz 1.0 to 8000 Hz
Frequency Range (±10 %) 0.8 to 10000 Hz 0.8 to 10000 Hz
Frequency Range (±3 dB) 0.4 to 12000 Hz 0.4 to 12000 Hz
Resonant Frequency ≥30 kHz ≥30 kHz
Broadband Resolution (1) 0.0002 g rms 0.002 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Response See Graph %/°F See Graph %/°F
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤300 Ohm ≤300 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.4 to 1.5 sec 0.4 to 1.5 sec
Settling Time (within 10% of bias) <8 sec <8 sec
Spectral Noise (1 Hz) 80 µg/√Hz 785 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 15 µg/√Hz 147 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 4 µg/√Hz 39 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 1 µg/√Hz 9.8 (µm/sec2)/√Hz [2]
Physical
Weight (Without Cable ) 0.04 oz 1.22 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Width 0.28 in 7.1 mm
Size - Height 0.19 in 4.8 mm
Size - Length 0.39 in 9.9 mm
Electrical Connector Solder pins with attached cable Solder pins with attached cable
Electrical Connection Position Side Side
Cable Termination 10-32 Coaxial Plug 10-32 Coaxial Plug
Cable Length 10 ft 3.05 m
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
039A35 Removal tool (352A74) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
