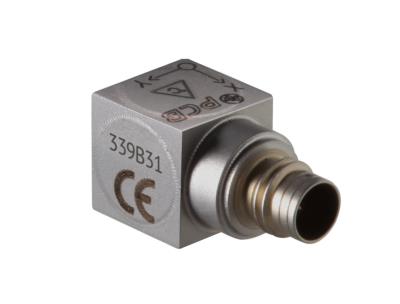

Triaxial ICP® Accelerometer

Model 339B31/NC

  • CE
  • IP

UHT-12™ Triaxial ICP® accel, 10-32 stud mount, 10 mV/g, LTC, no mating cable supplied

  • Electrical Filter Corner Frequency: >14 kHz
  • Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
  • Measurement Range: 500 g pk (4905 m/s² pk)
  • Frequency Range: (+/-10%)1.5 to 11000 Hz (1.5 to 11000 Hz)
  • Electrical Connector: 1/4-28 4-Pin (1/4-28 4-Pin)

Specification Notes


[1] Typical.
[2] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 10 mV/g 1.02 mV/(m/s²)
Measurement Range 500 g pk 4905 m/s² pk
Frequency Range (+/-5 %) 2 to 8000 Hz 2 to 8000 Hz
Frequency Range (+/-10 %) 1.5 to 11000 Hz 1.5 to 11000 Hz
Resonant Frequency ≥50 kHz ≥50 kHz
Filter Type (single pole) Low Pass Low Pass
Electrical Filter Roll-off 6 dB/octave 6 dB/octave
Electrical Filter Corner Frequency >14 kHz >14 kHz
Broadband Resolution .008 g rms .078 m/s² rms [1]
Non-Linearity ≤0.5 % ≤0.5 %
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range -65 to +356 °F -54 to +180 °C
Temperature Response See Graph %/°F See Graph %/°F [1]
Temperature Coefficient of Sensitivity .012 %/°F .022 %/°C [1]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤400 Ohm ≤400 Ohm
Output Bias Voltage 9 to 14 VDC 9 to 14 VDC
Discharge Time Constant .3 to 2 sec .3 to 2 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 4800 µg/√Hz 47088 (µm/sec2)/√Hz [1]
Spectral Noise (10 Hz) 560 µg/√Hz 5494 (µm/sec2)/√Hz [1]
Spectral Noise (100 Hz) 150 µg/√Hz 1472 (µm/sec2)/√Hz [1]
Spectral Noise (1 kHz) 60 µg/√Hz 589 (µm/sec2)/√Hz [1]
Physical
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height .4 in 10.2 mm
Size - Length .4 in 10.2 mm
Size - Width .4 in 10.2 mm
Weight .15 oz 4.2 gm [1]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Stud Stud
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
010S10 4-conductor, shielded, FEP cable, 10-ft, 1/4-28 4-socket plug for 200C to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC connector) 1
080A Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
ACS-44T Extended Frequency Response Calibration to +10% point on a triax accel, (requires ACS-1T) 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1
