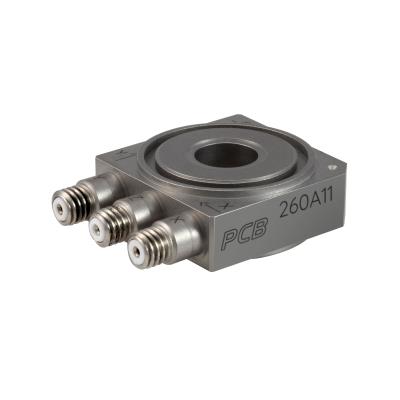

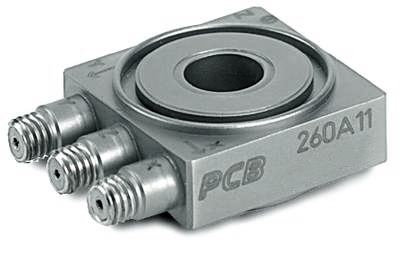

Model : 260A11 | Force Sensor, Charge Output, 3-Component

Click for lead times
Lead Time for 1-3 is 12 Wks
Lead Time for 4-5 is 14 Wks
triax force sensor, 1k lb (fz), 500 lb (fx,y), 15 pc/lb (z), 32 pc/lb (x, y)
$ 2,750.00 USD
(Pricing valid in US only!)

Triax force sensor, 1k lb (Fz), 500 lb (Fx,y), 15 pC/lb (z), 32 pC/lb (x, y)

  • Temperature Range: -100 to +350 °F ( -73 to +177 °C)
  • Electrical Connector: 10-32 Coaxial Jack

RELATED PRODUCTS



082B02
082B02

Anti-friction washer for Models (M)202B, (M)212B, (M)260A01, (M)260A11 & (M)260A31



Add to Cart for Quote
Add to Cart
083A10
083A10

Pilot bushing (for Models 260A01, 260A11 & 260A31)



Add to Cart for Quote
Add to Cart
443B02
443B02

1-channel system, dual-mode charge amplifier system, line powered



Add to Cart for Quote
Add to Cart
M081A70
M081A70

Pre-load bolt (for Models 260A01, 260A11 & 260A31)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±15 %) (Z Axis) 15 pC/lb 3.37 pC/N [ 2]
Sensitivity (±15 %) (X or Y Axis) 32 pC/lb 7.19 pC/N [ 2]
Measurement Range (Z Axis) 1000 lb 4.45 kN
Measurement Range (X or Y Axis) 500 lb 2.22 kN
Maximum Force (Z Axis) 1320 lb 5.87 kN
Maximum Force (X or Y Axis) 660 lb 2.94 kN
Maximum Moment (Z Axis) 14 ft-lb 18.98 Nm
Maximum Moment (X or Y Axis) 13 ft-lb 17.63 Nm
Upper Frequency Limit 90 kHz 90 kHz
Non-Linearity ≤1 % FS ≤1 % FS [ 1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -100 to +350 °F -73 to +177 °C
Electrical
Capacitance (all channels) 18 pF 18 pF [ 3]
Insulation Resistance (all channels) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (in direction of markings) Negative Negative
Physical
Preload ≤5000 lb ≤22.25 kN [ 4]
Stiffness (Z Axis) 10 lb/µin 1.75 kN/µm [ 3]
Stiffness (X or Y Axis) 4 lb/µin 0.7 kN/µm [ 3]
Size - Height 0.390 in 9.90 mm
Size - Length 0.950 in 24.1 mm
Size - Width 0.950 in 24.1 mm
Size - Bolt Diameter .313 in 8 mm
Size - ID 0.319 in 8.10 mm
Size - Sensing Surface 0.680 in 17.27 mm
Weight 0.868 oz 24.59 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector (Quantity, 3) 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Sensitivites are for listed preload. Sensitivites may vary ±5% depending on preload used.
[ 3] Typical.
[ 4] Preload should be at least 10 times the X and Y operating range used.


Accessories


Supplied
081A70 Pre-load bolt (for Models 260A01, 260A11, & 260A31) 1
082B02 Anti-friction washer for Models (M)202B, (M)212B, (M)260A01, (M)260A11 & (M)260A31 1
083A10 Pilot bushing (for Models 260A01, 260A11 & 260A31) 1
M081A70 Pre-load bolt (for Models 260A01, 260A11 & 260A31) 1


Optional Versions


( W ) Water Resistant Cable
English SI
Electrical Connection Position Side
