link quartz force sensor, 6k lb comp., 2500 lb tension, 18 pc/lb

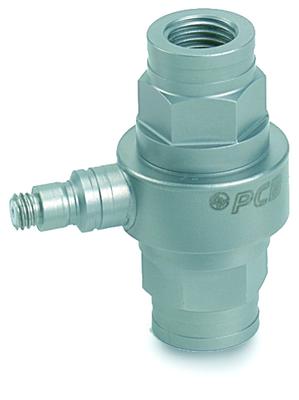

FORCE SENSOR

Model 232B

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
  • CE
  • IP

Link quartz force sensor, 6k lb comp., 2500 lb tension, 18 pC/lb

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 12000 Hz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Mounting Thread: 3/8 - 24 Female (No Metric Equivalent)
  • Weight: 2 oz (58 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.
[5] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) 6000 lb 26.69 kN
Measurement Range (Tension) 2500 lb 11.12 kN
Maximum Static Force (Compression) 7000 lb 31.14 kN
Maximum Static Force (Tension) 2800 lb 12.45 kN
Upper Frequency Limit 12000 Hz 12000 Hz [2] [3]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to +204 °C
Temperature Coefficient of Sensitivity ≤0.01 %/°F ≤0.018 %/°C
Electrical
Capacitance 20 pF 20 pF [4]
Insulation Resistance ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (Compression) Negative Negative
Physical
Stiffness 3 lb/µin 0.53 kN/µm [4]
Size - Diameter 0.870 in 22.1 mm
Size - Height 1.620 in 41.15 mm
Weight 2 oz 58 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 3/8 - 24 Female No Metric Equivalent

* All specifications are at room temperature unless otherwise specified.

Optional Versions

(M) Metric Mount

English SI
Mounting Thread No English Equivalent M10 x 1.00 Female
Mounting Thread No English Equivalent M10 x 1.00 Female

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
