accelerometer, pe, 3 pc/g, -67°f to +500°f, isolated, thru-hole mount, 3.1 grams, m3 connector, no cable incl.

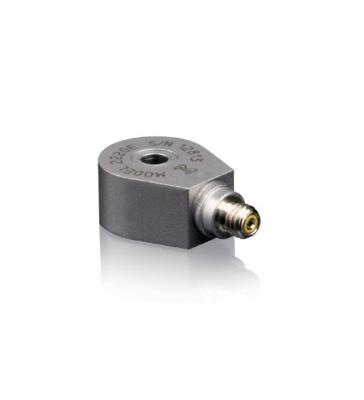

*PIEZOELECTRIC ACCELEROMETER

Model 2220E-R

Add to Quote
  • IP

Accelerometer, PE, 3 pC/g, -67°F to +500°F, isolated, thru-hole mount, 3.1 grams, M3 connector, no cable incl.

    Specification Notes

    English: SI:
    General
    Output type Charge Charge
    Sensitivity 3 pC/g 0.31 pC/(m/sec2)
    Max Temp 500°F 260°C
    Max Measurement Range 5000 g pk 49050 m/sec2 pk
    Max Frequency (±5%) 10000 Hz 10000 Hz
    Number of Axis 1 1
    Replacement (-R) Yes Yes

    * All specifications are at room temperature unless otherwise specified.

    Product Documents

    Product Downloads

    Model 2220E data sheet
