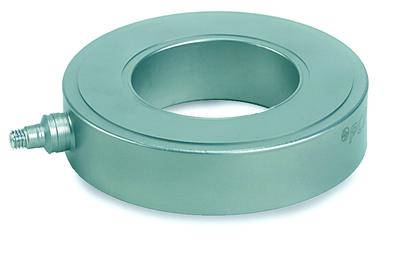

force ring, 100k lb comp., 17 pc/lb, charge output

Force Sensor, Charge Output

Model 217B

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Force ring, 100k lb comp., 17 pC/lb, charge output

  • Sensitivity: (±15%)17 pC/lb (3822 pC/kN)
  • Upper Frequency Limit: 35000 Hz
  • Temperature Range: -100 to +400 °F (-73 to +204 °C)
  • Weight: 12.5 oz (354 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.

English: SI:
Performance
Sensitivity (±15 %) 17 pC/lb 3822 pC/kN
Measurement Range (Compression) ≤100000 lb ≤444.8 kN
Maximum Static Force (Compression) 110000 lb 489.3 kN
Upper Frequency Limit 35000 Hz 35000 Hz [2] [3]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance 130 pF 130 pF [4]
Insulation Resistance ≥1E12 ≥1E12
Output Polarity (Compression) Negative Negative
Physical
Preload 33750 lb 150.13 kN
Stiffness 131 lb/µin 23 kN/µm [4]
Size - Diameter 2.950 in 74.93 mm
Size - Height 0.670 in 17.02 mm
Size - Bolt Diameter 1.5 in 40 mm
Size - ID (Hole Diameter) 1.610 in 40.89 mm
Size - OD (Sensor) 2.950 in 74.93 mm
Size - Sensing Surface 2.660 in 67.56 mm
Weight 12.5 oz 354 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A17 Mounting stud, 1 1/8-12 x 2.280", BeCu for Models 207C & 217B 1
082B07 Anti-friction washer for Models (M)207C & (M)217B 1
083B07 Pilot bushing for Models 207C & 217B 1

Optional Versions


(M) Metric Mount
Accessories:
Supplied 080A82 Accessory for Force - Torque Division Product 0
Supplied M081A17 Mounting Stud, M30 x 2.00 x 2.280, BeCu 0
Supplied M083B07 Pilot Bushing 0
Supplied 082B07 Anti-friction washer (for Models 207C and 217B) 0

(P) Positive Output Polarity

English SI
Output Polarity Positive

(W) Water Resistant Cable

English SI
Electrical Connector Molded Integral Cable Molded Integral Cable
Electrical Connection Position Side
