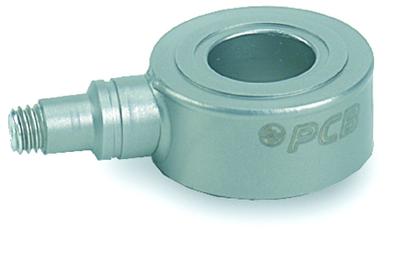

Charge quartz force ring, 10k lb comp., 18 pC/lb, charge output
- Sensitivity: (±15%)18 pC/lb
(4047 pC/kN)
- Upper Frequency Limit: 60000 Hz
- Temperature Range: -100 to +400 °F
(-73 to +204 °C)
- Weight: 0.67 oz
(19 gm)
|
English: |
SI: |
|
Performance |
Sensitivity (±15 %) |
18 pC/lb |
4047 pC/kN |
|
Measurement Range (Compression) |
10000 lb |
44.48 kN |
|
Maximum Static Force (Compression) |
15000 lb |
66.72 kN |
|
Upper Frequency Limit |
60000 Hz |
60000 Hz |
[2]
[3]
|
Non-Linearity |
≤1 % FS |
≤1 % FS |
[1]
|
Environmental |
Temperature Range |
-100 to +400 °F |
-73 to +204 °C |
|
Temperature Coefficient of Sensitivity |
≤0.01 %/°F |
≤0.018 %/°C |
|
Electrical |
Capacitance |
19 pF |
19 pF |
[4]
|
Insulation Resistance |
≥1E12 |
≥1E12 |
|
Output Polarity (Compression) |
Negative |
Negative |
|
Physical |
Preload |
2000 lb |
8.896 kN |
|
Stiffness |
16 lb/µin |
2.8 kN/µm |
[4]
|
Size - Diameter |
0.870 in |
22.1 mm |
|
Size - Height |
0.390 in |
9.91 mm |
|
Size - Bolt Diameter |
3/8 in |
10 mm |
|
Size - ID (Hole Diameter) |
0.413 in |
10.49 mm |
|
Size - OD (Sensor) |
0.870 in |
22.1 mm |
|
Size - Sensing Surface |
0.665 in |
16.89 mm |
|
Weight |
0.67 oz |
19 gm |
|
Housing Material |
Stainless Steel |
Stainless Steel |
|
Sealing |
Hermetic |
Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.
Accessories
|
|
|
Supplied |
080A82 |
Assembly lubricant (for Series 201-207 force rings) |
1 |
081A12 |
Mounting stud, 5/16-24 x 0.910", BeCu (for Models 202B & 212B) |
1 |
082B02 |
Anti-friction washer (for Models 202B, 212B, 260A01, 260A11, & 260A31) |
1 |
080A82 |
Assembly lubricant (for Series 201-207 force rings) |
0 |
081A12 |
Mounting stud, 5/16-24 x 0.910", BeCu (for Models 202B & 212B) |
0 |
082B02 |
Anti-friction washer (for Models 202B, 212B, 260A01, 260A11, & 260A31) |
0 |
083B02 |
Pilot bushing (for Models 202B & 212B) |
0 |
080A82 |
Assembly lubricant (for Series 201-207 force rings) |
1 |
081A12 |
Mounting stud, 5/16-24 x 0.910", BeCu (for Models 202B & 212B) |
1 |
082B02 |
Anti-friction washer (for Models 202B, 212B, 260A01, 260A11, & 260A31) |
1 |
083B02 |
Pilot bushing (for Models 202B & 212B) |
1 |
Optional Versions
( M ) Metric Mount
Accessories: |
Supplied |
080A82 |
Accessory for Force - Torque Division Product |
1 |
Supplied |
080A82 |
Accessory for Force - Torque Division Product |
1 |
Supplied |
082B02 |
Anti-Friction Washer |
1 |
Supplied |
082B02 |
Anti-Friction Washer |
1 |
Supplied |
080A82 |
Accessory for Force - Torque Division Product |
0 |
Supplied |
080A82 |
Accessory for Force - Torque Division Product |
0 |
Supplied |
M081A12 |
Mounting Stud, M8 x 1.00, BeCu |
0 |
Supplied |
M081A12 |
Mounting Stud, M8 x 1.00, BeCu |
0 |
Supplied |
M083B02 |
Pilot Bushing |
0 |
Supplied |
M083B02 |
Pilot Bushing |
0 |
Supplied |
082B02 |
Anti-Friction Washer |
0 |
Supplied |
082B02 |
Anti-Friction Washer |
0 |
Supplied |
080A82 |
Accessory for Force - Torque Division Product |
0 |
Supplied |
080A82 |
Accessory for Force - Torque Division Product |
0 |
Supplied |
M081A12 |
Mounting Stud, M8 x 1.00, BeCu |
0 |
Supplied |
M081A12 |
Mounting Stud, M8 x 1.00, BeCu |
0 |
Supplied |
M083B02 |
Pilot Bushing |
0 |
Supplied |
M083B02 |
Pilot Bushing |
0 |
Supplied |
082B02 |
Anti-Friction Washer |
0 |
Supplied |
082B02 |
Anti-Friction Washer |
0 |
( P ) Positive Output Polarity
( W ) Water Resistant Cable
Electrical Connector |
Molded Integral Cable |
Molded Integral Cable |
Electrical Connection Position |
Side |
