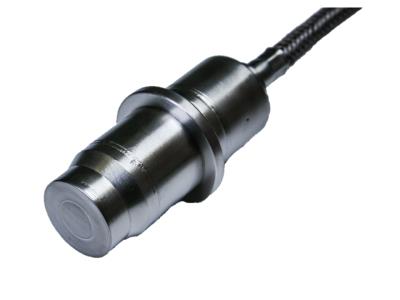

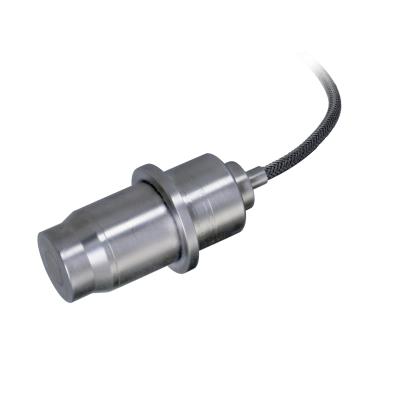

Model : 176A03 | Charge Output Pressure Sensor

Call for lead time
differential charge output pressure sensor with uht-12™ element, 16.0 pc/psi, +1200 f, atex-csa approved
$ 5,760.00 USD
(Pricing valid in US only!)

Differential charge output pressure sensor with UHT-12™ element, 16.0 pC/psi, +1200 F, ATEX-CSA approved

When using Model EX682A40 differential charge amplifier, also use 045M21B cable.

  • Measurement Range: 290 psi ( 20 bar)
  • Sensitivity: (±20%)16 pC/psi ( 232 pC/bar)
  • Sensing Element: UHT-12™
  • Temperature Range: -94 to 1200 °F ( -70 to 650 °C)
  • Electrical Connector: 7/16-27 2-Pin
  • Weight: 17.6 oz ( 500 gm)
Additional Configurations:

RELATED PRODUCTS



EX682A40
EX682A40

Intrinsically-safe, DIN mount, differential charge amplifier, 10 mV/pC



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±20 %) 16 pC/psi 232 pC/bar
Measurement Range 290 psi 20 bar
Maximum Pressure (Total) 2 kpsi 137.9 bar
Resonant Frequency ≥50 kHz ≥50 kHz
Transverse Resonance 10 kHz 10 kHz [ 2]
Frequency Response 10 kHz 10 kHz [ 3] [ 4]
Non-Linearity ≤1 % FS ≤1 % FS [ 1]
Environmental
Acceleration Sensitivity 0.003 psi/g 0.00021 bar/g [ 6]
Acceleration Sensitivity .007 psi/g .00050 bar/g [ 5]
Temperature Range (Continuous) -94 to 1200 °F -70 to 650 °C
Temperature Range (Receptacle) -76 to 500 °F -60 to 260 °C
Temperature Response See Graph %/°F See Graph %/°F
Hazardous Area Approval See Manual See Manual
Radiation Exposure Limit (Integrated Gamma Flux) 1E8 rad 1E8 rad
Radiation Exposure Limit (Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Electrical
Output Polarity Differential Differential
Capacitance (with cable pin - pin) 170 pF 170 pF [ 2]
Internal Resistance (room temp) ≥1000000000000 Ohm ≥1000000000000 Ohm
Insulation Resistance (room temp) ≥1000000000000 Ohm ≥1000000000000 Ohm
Internal Resistance (1200°F/650°C) ≥50 kohm ≥50 kohm
Insulation Resistance (1200°F/650°C) ≥100 kohm ≥100 kohm
Physical
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Compression Compression
Housing Material Nickel Alloy Nickel Alloy
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 7/16-27 2-Pin 7/16-27 2-Pin
Cable Type Overbraided Hardline Overbraided Hardline
Cable Length 10 ft 3.05 m
Weight (with cable) 17.6 oz 500 gm
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Low frequency response is determined by external signal conditioning electronics.
[ 4] Upper frequency response is calculated from Resonant Frequency.
[ 5] Maximum.
[ 6] Nominal.
[ 2] Typical.
[ 7] See PCB Declaration of Conformance PS058 for details.
