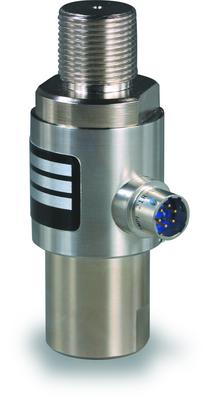

| Performance |
| Measurement Range (Full Scale Capacity) |
50000 lb |
220 kN |
[1]
|
| Sensitivity (output at rated capacity) |
2 mV/V |
2 mV/V |
[1]
[2]
|
| Non-Linearity |
≤0.15 % FS |
≤0.15 % FS |
[2]
|
| Hysteresis |
≤0.15 % FS |
≤0.15 % FS |
[2]
|
| Non-Repeatability |
≤0.05 % FS |
≤0.05 % FS |
[2]
|
| Resonant Frequency |
13.5 kHz |
13.5 kHz |
|
| Environmental |
| Overload Limit |
75000 lb |
335 kN |
|
| Load Limit (Side Force, FX or FY) |
2000 lb |
8.9 kN |
[3]
|
| Load Limit (Bending Moment, MX or MY) |
5000 in-lb |
560 Nm |
[3]
|
| Load Limit (Axial Torque, MZ) |
7000 in-lb |
790 Nm |
[3]
|
| Temperature Range (Operating) |
-65 to +200 °F |
-54 to +93 °C |
|
| Temperature Range (Compensated) |
+70 to +170 °F |
+21 to +77 °C |
|
| Temperature Effect on Output (Maximum) |
±0.002 %Reading/°F |
±0.0036 %Reading/°C |
[4]
|
| Temperature Effect on Zero Balance (Maximum) |
±0.002 %FS/°F |
±0.0018 %FS/°C |
[2]
|
| Electrical |
| Bridge Resistance |
350 Ohm |
350 Ohm |
[1]
|
| Excitation Voltage (Recommended) |
10 VDC |
10 VDC |
[5]
|
| Insulation Resistance |
>5000000000 Ohm |
>5000000000 Ohm |
|
| Physical |
| Size - Height |
6.25 in |
158.8 mm |
|
| Size - Diameter |
2.00 in |
50.8 mm |
|
| Weight |
1.25 lb |
0.57 kg |
|
| Mounting Thread |
1 1/4 - 12 Female |
Not Applicable |
|
| Housing Material |
17-4 Stainless Steel |
17-4 Stainless Steel |
|
| Sensing Element |
Strain Gage |
Strain Gage |
|
| Deflection at Full Scale Capacity |
0.003 in |
0.076 mm |
|
| Electrical Connector |
PT02E-10-6P |
PT02E-10-6P |
|
| Electrical Connection Position |
Side |
Side |
|
