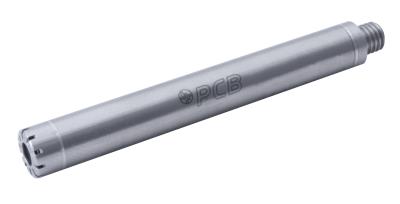

ICP® ARRAY MICROPHONE WITH INTEGRAL PREAMPLIFIER, 10-32 CONNECTOR, TEDS
- Nominal Microphone Diameter: 1/4"
- Sensitivity: 45 mV/Pa
- Inherent Noise: 29 dB re 20 µPa
RELATED PRODUCTS
|
English: |
SI: |
|
| Performance |
| Nominal Microphone Diameter |
1/4" |
1/4" |
|
| Frequency Response Characteristic (at 0° incidence) |
Free-Field |
Free-Field |
|
| Frequency Response (±2 dB) |
20 to 10000 Hz |
20 to 10000 Hz |
|
| Frequency Response (±3 dB) |
10 to 16000 Hz |
10 to 16000 Hz |
|
| Frequency Response (±4 dB) |
10 to 20000 Hz |
10 to 20000 Hz |
|
| Phase Match (100 Hz to 3 kHz) |
±3 ° |
±3 ° |
[1]
|
| Phase Match (50 Hz to 5 kHz) |
±5 ° |
±5 ° |
[1]
|
| Phase Match (5 kHz to 10 kHz) |
±10 ° |
±10 ° |
[1]
|
| Sensitivity |
45 mV/Pa |
45 mV/Pa |
|
| Sensitivity (+/-3 ) (@ 250 Hz) |
-26.9 dB re 1 V/Pa |
-26.9 dB re 1 V/Pa |
|
| Inherent Noise (Linear) |
29 dB re 20 µPa |
29 dB re 20 µPa |
[1]
|
| Inherent Noise (A Weighted) |
<26 dB(A) re 20 µPa |
<26 dB(A) re 20 µPa |
|
| Inherent Noise (A Weighted) |
24 dB(A) re 20 µPa |
24 dB(A) re 20 µPa |
[1]
|
| Dynamic Range (3% Distortion Limit) |
>122 dB re 20 µPa |
>122 dB re 20 µPa |
|
| TEDS Compliant |
Yes |
Yes |
[2]
|
| Environmental |
| Temperature Range (Operating) |
+14 to +122 °F |
-10 to +50 °C |
|
| Temperature Effect on Output (-10 to +50 °C) |
0.7 dB |
0.7 dB |
[1]
|
| Electrical |
| Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
| Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
| Output Bias Voltage |
5.5 to 14 VDC |
5.5 to 14 VDC |
|
| Output Impedance |
<150 Ohm |
<150 Ohm |
|
| Physical |
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Electrical Connector (Output) |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
| Size - Diameter (overall) |
0.28 in |
7.0 mm |
|
| Size - Length (overall) |
2.31 in |
58.6 mm |
|
| Weight |
0.30 oz |
8.5 gm |
[1]
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[1] Typical.
[2] TEDS Capable Digital Communication, compliant with IEEE 1451.4
[1] Typical.
[3] See PCB Declaration of Conformance PS023 for details.
