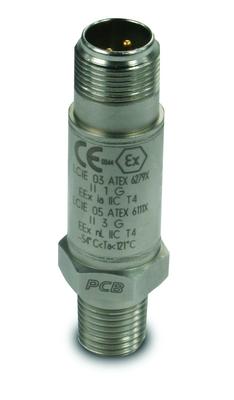

Model : 121A44 | ICP® Pressure Sensor

Call for lead time
$ 2,095.00 USD
(Pricing valid in US only!)

Intrinsic safe ICP® pressure sensor, 50 psi, 100 mV/psi, case isolated, 2-pin connector, temp to 250F

  • Measurement Range: 50 psi (344.8 kPa)
  • Sensitivity: (±15%)100 mV/psi (14.5037 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=60 kHz (>=60 kHz)
  • Electrical Connector: 2-Pin MIL-C-5015
  • Weight: 2.7 oz (75.6 gm)
English: SI:
Performance
Measurement Range (for ±5V output) 50 psi 344.8 kPa
Sensitivity (±15 %) 100 mV/psi 14.5037 mV/kPa
Maximum Pressure 8 kpsi 55.16 MPa [2]
Resolution 0.5 mpsi 0.003 kPa
Resonant Frequency ≥60 kHz ≥60 kHz
Rise Time (Reflected) ≤4 µ sec ≤4 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤2.0 % FS ≤2.0 % FS [1]
Environmental
Acceleration Sensitivity ≤0.05 psi/g ≤0.035 kPa/(m/s²)
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Hazardous Area Approval CSA (C-US) NRTL - Canadian Standards Association CSA (C-US) NRTL - Canadian Standards Association [3] [4] [5] [6]
Hazardous Area Approval ATEX ATEX [7] [8] [9]
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1.0 sec ≥1.0 sec
Excitation Voltage 22 to 28 VDC 22 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 10 to 15 VDC 10 to 15 VDC
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material 316L Stainless Steel 316L Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Weight 2.7 oz 75.6 gm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Due to high sensitivity, the static pressure should be applied and removed very slowly. Rate should prevent more than 10 Volt change in output until Output Bias Voltage returns to normal (approximately 15 times discharge time constant).
[3] AEx nA IIC T4, DIV2 CL1 GR A-D
[4] Ex nL IIC T4, DIV2 CL1 GR A-D
[5] AEx ia IIC T4, DIV1 CL1 GR A-D
[6] Ex ia IIC T4, DIV1 CL1 GR A-D
[7] Ex ia IIC T4.
[8] Ex nL IIC T4.
[9] Ex nA IIC T4.
[10] See PCB Declaration of Conformance PS059 for details.
