platinum stock products; high frequency icp® pressure sensor, 1000 psi, 5 mv/psi, 0.218 dia. diaphragm, accel. comp.
platinum

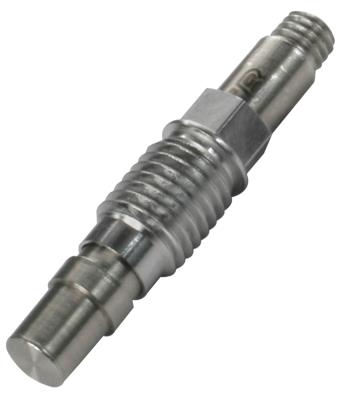

ICP® Pressure Sensor

Model 113B24

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-10 is 3 Wks.
Lead Time for 11-15 is 4 Wks.
Lead Time for 16-20 is 6 Wks.
Lead Time for 16-20 is 6 Wks.
  • CE
  • IP

Platinum Stock Products; High frequency ICP® pressure sensor, 1000 psi, 5 mV/psi, 0.218" dia. diaphragm, accel. comp.

  • Measurement Range: 1 kpsi (6895 kPa)
  • Sensitivity: (±10%)5.0 mV/psi (0.725 mV/kPa)
  • Low Frequency Response: (-5%)0.005 Hz
  • Resonant Frequency: >=500 kHz (>=500 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.21 oz (6.0 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may be limited by output bias.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 1 kpsi 6895 kPa
Useful Overrange (for ± 10V output) 2 kpsi 13790 kPa [3]
Sensitivity (±10 %) 5.0 mV/psi 0.725 mV/kPa
Maximum Pressure 10 kpsi 68950 kPa
Resolution 5 mpsi 0.035 kPa [2]
Resonant Frequency ≥500 kHz ≥500 kHz
Rise Time ≤1.0 µ sec ≤1.0 µ sec
Low Frequency Response (-5 %) 0.005 Hz 0.005 Hz
Non-Linearity ≤1.0 % FS ≤1.0 % FS [1]
Environmental
Acceleration Sensitivity 0.002 psi/g 0.0014 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to +275 °F -73 to +135 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 2000 g pk 19600 m/s² pk
Maximum Shock 20000 g pk 196000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥100 sec ≥100 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material 17-4 Stainless Steel 17-4 Stainless Steel
Diaphragm Invar Invar
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight (with clamp nut) 0.21 oz 6.0 gm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
PCS-1AZ 0
060A03 Clamp nut, 5/16-24-2A thd, 1/4" hex, SS (for Series 111, 112 & 113) 1
060A05 Clamp nut, M7 x 0.75-6G thd (for Series M111, M112 & M113) 1
065A05 Seal sleeve, sensor recess mount, 0.248" OD x 0.221" ID x 0.240" thk, 17-4 SS (for Series 111A, 112A & 113A) 1
065A02 Seal ring, sensor flush mount, 0.248" OD x 0.219" ID x 0.015" thk, brass (for Series 111A, 112A & 113A) 3

Optional Versions


(E) Emralon coating

English SI
Coating Emralon
Electrical Isolation 100000000 Ohm

(J) Ground Isolated

English SI
Electrical Isolation 100000000 Ohm 100000000

(S) Stainless Steel Diaphragm

English SI
Diaphragm 316L Stainless Steel
(W) Water Resistant Cable
Accessories:
Supplied 060A03 Clamp nut, 5/16-24-2A thd, 1/4" hex, stainless steel 1
(WM) Water Resistant Cable
Accessories:
Supplied 060A05 Clamp nut M7 x 0.75-6g thd 1
