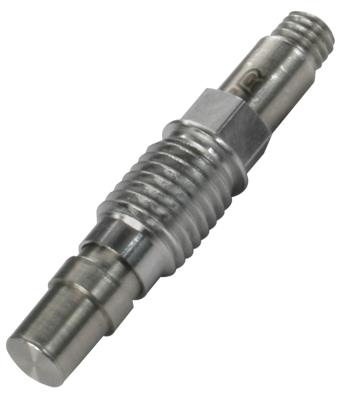

ICP® Pressure Sensor

Model 113B21

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Lead Time for 1-10 is 3 Wks. Lead Time for 11-15 is 4 Wks. Lead Time for 16-20 is 6 Wks.
	Lead Time for 16-20 is 6 Wks.

Platinum Stock Products; High frequency ICP® pressure sensor, 200 psi, 25 mV/psi, 0.218" dia. diaphragm, accel. comp.

Measurement Range: 200 psi (1379 kPa)
Sensitivity: (±15%)25 mV/psi (3.6 mV/kPa)
Low Frequency Response: (-5%)0.5 Hz
Resonant Frequency: >=500 kHz (>=500 kHz)
Electrical Connector: 10-32 Coaxial Jack
Weight: 0.21 oz (6.0 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may be limited by output bias.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

	English:	SI:
Performance
Measurement Range (for ±5V output)	200 psi	1379 kPa
Useful Overrange (for ± 10V output)	400 psi	2758 kPa	[3]
Sensitivity (±15 %)	25 mV/psi	3.6 mV/kPa
Maximum Pressure	1 kpsi	6895 kPa
Resolution	1.0 mpsi	0.007 kPa	[2]
Resonant Frequency	≥500 kHz	≥500 kHz
Rise Time	≤1.0 µ sec	≤1.0 µ sec
Low Frequency Response (-5 %)	0.5 Hz	0.5 Hz
Non-Linearity	≤1.0 % FS	≤1.0 % FS	[1]
Environmental
Acceleration Sensitivity	≤0.002 psi/g	≤0.0014 kPa/(m/s²)
Temperature Range (Operating)	-100 to +275 °F	-73 to +135 °C
Temperature Coefficient of Sensitivity	≤0.03 %/°F	≤0.054 %/°C	[2]
Maximum Flash Temperature	3000 °F	1649 °C
Maximum Vibration	2000 g pk	19614 m/s² pk
Maximum Shock	20000 g pk	196140 m/s² pk
Electrical
Output Polarity (Positive Pressure)	Positive	Positive
Discharge Time Constant (at room temp)	≥1.0 sec	≥1.0 sec
Excitation Voltage	20 to 30 VDC	20 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	<100 Ohm	<100 Ohm
Output Bias Voltage	8 to 14 VDC	8 to 14 VDC
Physical
Sensing Geometry	Compression	Compression
Sensing Element	Quartz	Quartz
Housing Material	17-4 Stainless Steel	17-4 Stainless Steel
Diaphragm	Invar	Invar
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	10-32 Coaxial Jack	10-32 Coaxial Jack
Weight (with clamp nut)	0.21 oz	6.0 gm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
060A03	Clamp nut, 5/16-24-2A thd, 1/4" hex, SS (for Series 111, 112 & 113)	1
060A05	Clamp nut, M7 x 0.75-6G thd (for Series M111, M112 & M113)	1
065A05	Seal sleeve, sensor recess mount, 0.248" OD x 0.221" ID x 0.240" thk, 17-4 SS (for Series 111A, 112A & 113A)	1
065A02	Seal ring, sensor flush mount, 0.248" OD x 0.219" ID x 0.015" thk, brass (for Series 111A, 112A & 113A)	3
