high pressure icp® ballistic pressure sensor, 100k psi, 0.07 mv/psi, accel. comp.

ICP® Pressure Sensor

Model 109D12

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
1 Call for Lead Time
  • CE
  • IP

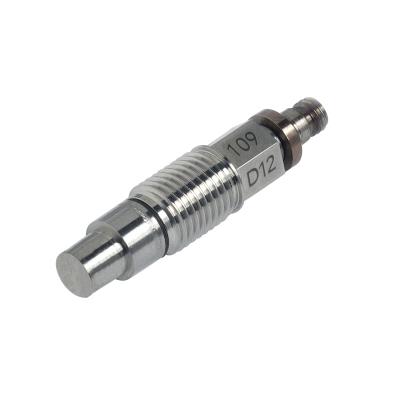

High pressure ICP® ballistic pressure sensor, 100k psi, 0.07 mV/psi, accel. comp.

  • Measurement Range: 100000 psi (690000 kPa)
  • Sensitivity: (±15%)0.07 mV/psi (0.010 mV/kPa)
  • Resonant Frequency: >=400 kHz (>=400 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.6 oz (17 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ± 7V output) 100000 psi 690000 kPa
Sensitivity (±15 %) 0.07 mV/psi 0.010 mV/kPa
Maximum Pressure 125000 psi 862000 kPa
Resolution 2.0 psi 13.8 kPa [2]
Resonant Frequency ≥400 kHz ≥400 kHz
Rise Time ≤2.0 µ sec ≤2.0 µ sec
Non-Linearity ≤2.0 % FS ≤2.0 % FS [1]
Environmental
Acceleration Sensitivity .02 psi/g 0.014 kPa/(m/s²) [2]
Temperature Range (Operating) -100 to +275 °F -73 to +135 °C
Temperature Coefficient of Sensitivity ≤0.07 %/°F ≤0.126 %/°C
Maximum Flash Temperature 3000 °F 1650 °C
Maximum Vibration 2000 g pk 19600 m/s² pk
Maximum Shock 50000 g pk 490000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) >1000 sec >1000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material C-300 C-300
Diaphragm C-300 C-300
Sealing Epoxy Epoxy
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.6 oz 17 gm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
PCS-2 Calibration of pressure sensors up to 100k psi (includes Series 117B in oil, excludes model 113B50) 0
065A06 Seal ring, 0.318" OD x 0.250" ID x 0.010" thick, 316L SS (for Series 108, 109, 118 and 119) 3

Optional Versions


(H) Hermetic Seal

English SI
Sealing Welded Hermetic
Maximum Shock 20000 g pk 196133
Housing Material 17-4 Stainless Steel
