cryogenic icp® pressure sensor, 10k psi, 0.5 mv/psi, 3/8-24 mtg thd, ground isolated with safety wire holes

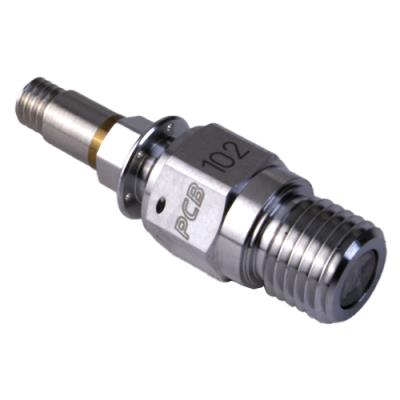

ICP® Pressure Sensor

Model 102B13

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Cryogenic ICP® pressure sensor, 10k psi, 0.5 mV/psi, 3/8-24 mtg thd, ground isolated with safety wire holes

  • Measurement Range: 10 kpsi (68950 kPa)
  • Sensitivity: (±15%)0.5 mV/psi (0.073 mV/kPa)
  • Low Frequency Response: (-5%)0.1 Hz
  • Resonant Frequency: >=250 kHz (>=250 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.388 oz (11.00 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Measurement Range (for ±5V output) 10 kpsi 68950 kPa
Useful Overrange 15 kpsi 103425 kPa
Sensitivity (±15 %) 0.5 mV/psi 0.073 mV/kPa
Maximum Pressure (static) 15 kpsi 103425 kPa
Resolution 200 mpsi 1.4 kPa [2]
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time ≤2.0 µ sec ≤2.0 µ sec
Low Frequency Response (-5 %) 0.1 Hz 0.1 Hz
Non-Linearity <1 % FS <1 % FS [1]
Environmental
Acceleration Sensitivity ≤0.002 psi/g ≤0.0014 kPa/(m/s²)
Temperature Range (Operating) -320 to +212 °F -196 to +100 °C
Temperature Coefficient of Sensitivity ≤0.06 %/°F ≤0.108 %/°C
Maximum Shock 20000 g pk 196140 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥5 sec ≥5 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 9 to 13 VDC 9 to 13 VDC
Physical
Sensing Element Quartz Quartz
Housing Material Stainless Steel Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.388 oz 11.00 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
065A34 Seal ring, 0.435" OD x 0.397" ID x 0.030" thk, Cu (for Model M102A10) 3
065A44 Seal ring, 0.435" OD x 0.377" ID x 0.030" thk, Cu (for Model 102A10) 3

Optional Versions

(M) Metric Mount
Accessories:
Supplied 065A34 Seal ring 0.435" OD x 0.397" ID x 0.030" Cu 3
