Model : 070A87

Call for lead time
$ 225.00 USD
(Pricing valid in US only)

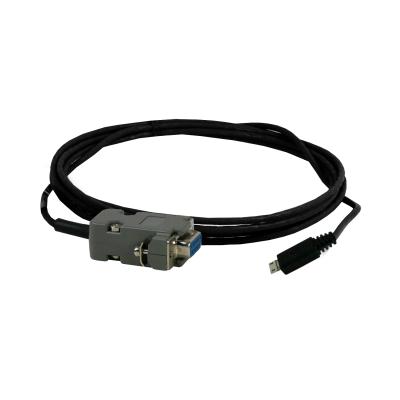

Echo® Programming Cable with RS232 to mini USB connector for programming Echo® sensors

Model 070A87 is a special RS-232 adapter cable with a DB9 connector to a Micro USB connector that allows serial communication with Echo® Wireless Vibration Sensors. The cable’s Micro USB connector mates with a Micro USB connector in the in the sensor and is used to read and program the units.

  • Connection Type: Micro USB (Micro B/USB 2.0)
  • Cable Style: Multi Conductor
English: SI:
Performance
Number of Conductors 5 5
Cable Style Multi Conductor Multi Conductor
Connection Type (sensor side) Micro USB (Micro B/USB 2.0) Micro USB (Micro B/USB 2.0)
Connector Style (sensor side) Male Male
Connection Type (Receiver side) DB9 DB9
Connector Style (Receiver side) Male Male
Connection Type (sensor side) Push-on Push-on
Connection Type (Receiver side) Push-on with thumb screws Push-on with thumb screws
Number of Conductors 5 5
Cable Style Multi Conductor Multi Conductor
Connection Type (sensor side) Micro USB (Micro B/USB 2.0) Micro USB (Micro B/USB 2.0)
Connector Style (sensor side) Male Male
Connection Type (Receiver side) DB9 DB9
Connector Style (Receiver side) Male Male
Connection Type (sensor side) Push-on Push-on
Connection Type (Receiver side) Push-on with thumb screws Push-on with thumb screws
Physical
Cable Jacket Diameter 0.149 in 3.8 mm
Cable Jacket Material PVC PVC
Cable Jacket Color Black Black
ROHS Compliant Yes Yes
Cable Jacket Diameter 0.149 in 3.8 mm
Cable Jacket Material PVC PVC
Cable Jacket Color Black Black
ROHS Compliant Yes Yes
* All specifications are at room temperature unless otherwise specified
.


Specification Notes
