042 cable with 3/16 ss armor (price per foot)

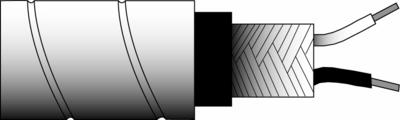

TWISTED SHIELDED CABLE WITH 3/16 ARMOR

Model 067

  • IP

042 Cable with 3/16" SS armor (price per foot)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 2
  • Cable Jacket Material: Polyurethane
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 2 2
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Twisted Pair Twisted Pair
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Impedance 73 Ohm 73 Ohm [1]
Capacitance (conductor to conductor @ 70 °F (21 °C)) 20 pF/ft 66 pF/m
Physical
Cable Jacket Diameter (±.005 in) 0.16 in 4.06 mm [1]
Cable Jacket Material Polyurethane Polyurethane
Cable Jacket Color Black Black
Protective Covering Diameter 0.27 in 6.81 mm [1]
Protective Covering Stainless Steel Armor Stainless Steel Armor
Conductor Style Stranded - 19 Strands 38 AWG Stranded - 19 Strands 38 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter 0.02 in 0.51 mm [1]
Insulation Material Over Conductor(s) FEP FEP
Shield Type Over Conductor(s) Spiral: 95% Minimum Coverage Spiral: 95% Minimum Coverage
Shield Material Over Conductor(s) Tinned Copper Tinned Copper
Filler Material Synthetic FFP Synthetic FFP
Bend Radius (minimum) 3 in 76 mm
Weight 1.11 oz/ft 102.87 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
