polyurethane cable, 3-conductor twisted, shielded

Cable

Model 062

  • IP

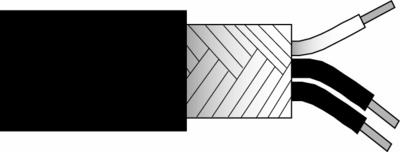

Polyurethane cable, 3-conductor twisted, shielded

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 3
  • Cable Jacket Material: Polyurethane
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 3 3
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Twisted Bundle Twisted Bundle
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Impedance 73 Ohm 73 Ohm [1]
Capacitance (conductor to conductor @ 70 °F (21 °C)) 20 pF/ft 66 pF/m
Physical
Cable Jacket Diameter (±.005 in) 0.160 in 4.06 mm [1]
Cable Jacket Material Polyurethane Polyurethane
Cable Jacket Color Black Black
Conductor Style Stranded - 19 Strands 40 AWG Stranded - 19 Strands 40 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (28 AWG) 0.013 in 0.330 mm [1]
Shield Type Over Bundle Braid: 94% Minimum Coverage Braid: 94% Minimum Coverage
Shield Material Over Bundle Tin Plated Copper Tin Plated Copper
Filler Material Synthetic FFP Synthetic FFP
Bend Radius (minimum) 1.60 in 40.64 mm
Weight 0.28 oz/ft 26.04 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
