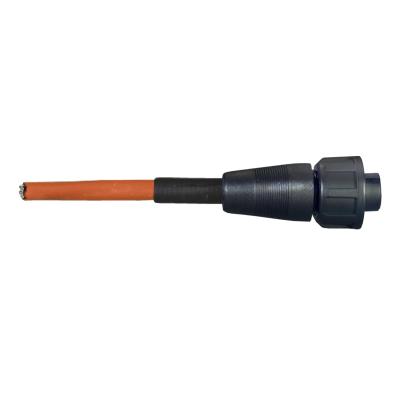

CUSTOM CABLE, 055BR006BZ

Heavy duty two-conductor shielded twisted pair cable with PTFE jacket, 10 ft., 2-socket MIL to blunt cut.
  • Temperature Range: -67 to 250 °F (-55 to 121 °C)
  • Connection Type: 2-pin
  • Cable Style: Multi Conductor - Shielded

Specification Notes


English: SI:
Performance
Number of Conductors 2 2
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Connector Model (sensor side) Molded Composite Molded Composite
Connector Style (sensor side) MIL-C-5015 MIL-C-5015
Connection Type (sensor side) 2-pin 2-pin
Coupling Method (sensor side) Threaded Threaded
Connector Style (termination) Blunt Cut Blunt Cut
Environmental
Temperature Range -67 to 250 °F -55 to 121 °C
Electrical
Capacitance 27 pF/ft 89 pF/m
Physical
Cable Jacket Diameter 0.19 in 4.83 mm
Cable Jacket Material PTFE PTFE
Cable Jacket Color Orange Orange
Conductor Style Stranded - 19 strands 32 AWG Stranded - 19 strands 32 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (20 AWG) 0.038 in 0.965 mm
Shield Type Over Bundle Braid: 85% Minimum Coverage Braid: 85% Minimum Coverage
Shield Material Over Bundle Tin Plated Copper Tin Plated Copper
Bend Radius (minimum) 1.9 in 48.3 mm
Weight 0.52 oz/ft 47.97 gm/m
Size - Length 6 ft 1.82 m
