2-cond. twisted/shielded pair, coiled polyurethane cable, 6-ft, 2-pin mil w/ env. sealed backshell, extended strain relief to 5-pin turck conn.

Custom Cable

Model 050LQ006HX

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

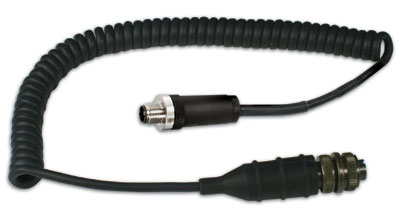

2-cond. twisted/shielded pair, coiled polyurethane cable, 6-ft, 2-pin MIL w/ env. sealed backshell, extended strain relief to 5-pin Turck conn.

Coiled cable, 6 ft., 2-socket super MIL with extended strain relief for route-based data collection to 5-pin turck connector

    Specification Notes


    [1] Typical.

    English: SI:
    Performance
    Number of Conductors 2 2
    Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
    Connector Model (sensor side) extended strain relief extended strain relief
    Connector Style (sensor side) MIL-C-5015 MIL-C-5015
    Connection Type (sensor side) 2-socket 2-socket
    Coupling Method (sensor side) Threaded Threaded
    Connector Model (termination) 5-pin Turck 5-pin Turck
    Coupling Method (termination) Threaded Threaded
    Environmental
    Temperature Range -22 to 176 °F -30 to 80 °C
    Electrical
    Capacitance 31 pF/ft 102 pF/m [1]
    Physical
    Cable Jacket Diameter (±.010 in) 0.21 in 5.33 mm [1]
    Cable Jacket Material TPE TPE
    Cable Jacket Color Black Black
    Conductor Style Stranded - 21 Strands 36 AWG Stranded - 21 Strands 36 AWG
    Conductor Material Tin Plated Copper Tin Plated Copper
    Conductor Diameter (23 AWG) 0.028 in 0.711 mm [1]
    Insulation Material Over Conductor(s) Polypropylene Polypropylene
    Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
    Shield Material Over Conductor(s) Tinned Copper Tinned Copper
    Bend Radius 2.1 in 53.3 mm
    Weight 0.25 lb 0.11 kg [1]
    Size - Length 6 ft 1.829 m

    * All specifications are at room temperature unless otherwise specified.
