2-cond. twisted/shielded pair, coiled polyurethane cable, 6-ft, 2-pin mil w/ env. sealed backshell, extended strain relief to 7-pin lemo connector

Custom Cable

Model 050LQ006DP

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

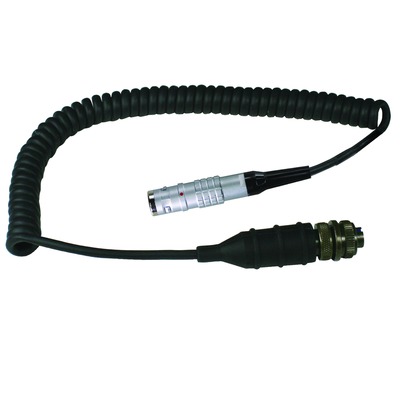

2-cond. twisted/shielded pair, coiled polyurethane cable, 6-ft, 2-pin MIL w/ env. sealed backshell, extended strain relief to 7-pin LEMO connector

Coiled cable, 6 ft., 2-socket super MIL with extended strain relief for route-based data collection to 7-pin LEMO connector for Rockwell Automation/Entek/IRD Datapac

    Specification Notes

    [1] Typical.

    English: SI:
    Performance
    Number of Conductors 2 2
    Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
    Connector Model (sensor side) extended strain relief extended strain relief
    Connector Style (sensor side) MIL-C-5015 MIL-C-5015
    Connection Type (sensor side) 2-socket 2-socket
    Coupling Method (sensor side) Threaded Threaded
    Connector Model (termination) 7-pin 7-pin
    Connector Style (termination) LEMO LEMO
    Environmental
    Temperature Range -22 to 176 °F -30 to 80 °C
    Electrical
    Capacitance 31 pF/ft 102 pF/m [1]
    Physical
    Cable Jacket Diameter (±.010 in) 0.21 in 5.33 mm [1]
    Cable Jacket Material TPE TPE
    Cable Jacket Color Black Black
    Conductor Style Stranded - 21 Strands 36 AWG Stranded - 21 Strands 36 AWG
    Conductor Material Tin Plated Copper Tin Plated Copper
    Conductor Diameter (23 AWG) 0.028 in 0.711 mm [1]
    Insulation Material Over Conductor(s) Polypropylene Polypropylene
    Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
    Shield Material Over Conductor(s) Tinned Copper Tinned Copper
    Bend Radius 2.1 in 53.3 mm
    Weight 0.25 lb 0.11 kg [1]
    Size - Length 6 ft 1.829 m

    * All specifications are at room temperature unless otherwise specified.
