Model : 050LQ006CV | 2-socket MIL with ext strain relief to 25-pin, D-style connector for use with CSI 2100, 2110, & 2120 data collectors with 6 feet of Coiled, general purpose, polyurethane

Click for lead times
2-socket mil with ext strain relief to 25-pin, d-style connector for use with csi 2100, 2110, & 2120 data collectors with 6 feet  of coiled, general purpose, polyurethane
$ 168.00 USD
(Pricing valid in US only!)

2-socket MIL with ext strain relief to 25-pin, D-style connector for use with CSI 2100, 2110, & 2120 data collectors with 6 feet of Coiled, general purpose, polyurethane

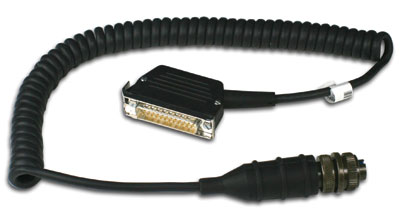

Coiled cable, 6 ft., 2-socket super MIL with extended strain relief for route-based data collection to 25-pin d-sub connector

    English: SI:
    Performance
    Number of Conductors 2 2
    Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
    Connector Model (sensor side) extended strain relief extended strain relief
    Connector Style (sensor side) MIL-C-5015 MIL-C-5015
    Connection Type (sensor side) 2-socket 2-socket
    Coupling Method (sensor side) Threaded Threaded
    Connector Model (termination) 25-pin d-sub 25-pin d-sub
    Coupling Method (termination) Threaded Threaded
    Environmental
    Temperature Range -22 to 176 °F -30 to 80 °C
    Electrical
    Capacitance 31 pF/ft 102 pF/m [ 1]
    Physical
    Cable Jacket Diameter (±.010 in) 0.21 in 5.33 mm [ 1]
    Cable Jacket Material TPE TPE
    Cable Jacket Color Black Black
    Conductor Style Stranded - 21 Strands 36 AWG Stranded - 21 Strands 36 AWG
    Conductor Material Tin Plated Copper Tin Plated Copper
    Conductor Diameter (23 AWG) 0.028 in 0.711 mm [ 1]
    Insulation Material Over Conductor(s) Polypropylene Polypropylene
    Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
    Shield Material Over Conductor(s) Tinned Copper Tinned Copper
    Bend Radius 2.1 in 53.3 mm
    Weight 0.25 lb 0.11 kg [ 1]
    Size - Length 6 ft 1.829 m
    * All specifications are at room temperature unless otherwise specified
    .




    Specification Notes


    [ 1] Typical.
