rotary torque only transducer, w/o auto-id, 15 nm (132 in-lb), 1/4-inch square drive, 4-pin pt receptacle, for impact tools

ROTARY TORQ, 15 NM, 1/4-IN SQ DR

Model 039025-54015

Add to Quote
  • CE
  • IP

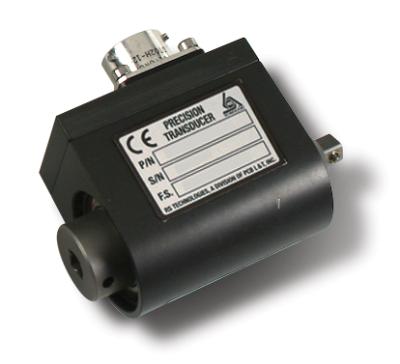

Rotary Torque Only Transducer, w/o Auto-ID, 15 Nm (132 in-lb), 1/4-inch Square Drive, 4-pin PT Receptacle, for Impact Tools

    Specification Notes

    [1] FS - Full Scale.
    [2] Matched for mV/V and shunt calibration.
    [3] Matched to ±0.25% F.S.
    [4] Over compensated temperature range.
    [1] FS - Full Scale.
    [5] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
    [6] Matched with 43.575 kOhm Precision Resistor.
    [7] Per ANSI B107.4 Specifications
    [8] See Outline Drawing 52048 for Complete Dimensions
    [9] See PCB Declaration of Conformance PS119 for details.

    English: SI:
    Performance
    Measurement Range (Full Scale Capacity) 132 lbf-in 15 Nm
    Sensitivity (output at rated capacity) 2.0 mV/V 2.0 mV/V [3]
    Non-Linearity ≤0.25 % FS ≤0.25 % FS [1]
    Hysteresis ≤0.25 % FS ≤0.25 % FS [1]
    Non-Repeatability ≤0.05 % FS ≤0.05 % FS [1]
    Interchangeabilty ≤0.30 % FS ≤0.30 % FS [1] [2]
    Environmental
    Overload Limit 203 lbf-in 23 Nm
    Temperature Range (Operating) 0 to +200 °F -18 to +93 °C
    Temperature Range (Compensated) +70 to +150 °F +21 to +66 °C
    Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0018 %Reading/°C [4]
    Temperature Effect on Zero Balance (Maximum) ±0.002 %FS/°F ±0.0018 %FS/°C [4]
    Electrical
    Bridge Resistance 350 Ohm 350 Ohm
    Excitation Voltage 10 VDC 10 VDC [5]
    Insulation Resistance ≥5 GOhm ≥5 GOhm
    Zero Balance ≤2 % FS ≤2 % FS [1]
    Shunt Calibration ≤0.25 % FS ≤0.25 % FS [1] [6]
    Physical
    Size - Shaft Length 3.23 in 82.0 mm [8]
    Size - Housing Length 2.30 in 58.4 mm [8]
    Size - Housing Height 2.00 in 50.8 mm [8]
    Weight .75 lb 340 gm
    Mounting 1/4 inch Sq Drive 6.35 mm Sq Drive [7]
    Sensing Element Strain Gage Strain Gage
    Housing Material Aluminum Aluminum
    Shaft Material Steel Steel
    Electrical Connector PT02H-8-4P PT02H-8-4P
    Maximum Speed 5000 RPM 5000 RPM

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Optional
    080962-01000 Model 962 Portable Transient Data Recorder, complete with FastPlot2 data transfer software, 8GB USB Memory Drive, USB cable for data upload/download, battery charger, and carrying case 1
    097000-34149 Cable Assembly, DB-15P to PT06A-8-4S, 2-ft coiled (9-ft straight), Connects Non-Auto-ID Hand Torque Only Wrench, Non-Auto-ID Rotary Torque Transducer or Stationary Torque Transducer to RS Instrument (Model 922, 962) 1
    4242R-000600 1
    Supplied
    7122R-04352A Precision Cal Resistor 43.575K Ohm 1
