industrial, 2-conductor, 20 awg (19/32), twisted, shielded, 22 awg drain, polyurethane cable (price per foot)

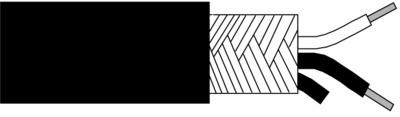

Industrial Twisted Shielded Pair PolyurethaneCable

Model 024

Add to Quote
  • IP

Industrial, 2-conductor, 20 awg (19/32), twisted, shielded, 22 awg drain, polyurethane cable (price per foot)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 2
  • Cable Jacket Material: Polyurethane
  • Temperature Range: -58 to +250 °F (-50 to +121 °C)

Specification Notes

[1] Typical.

English: SI:
Performance
Number of Conductors 2 2
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Twisted Pair Twisted Pair
Environmental
Temperature Range -58 to +250 °F -50 to +121 °C
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 36 pF/ft 118 pF/m
Physical
Cable Jacket Diameter .250 in 6.35 mm [1]
Cable Jacket Material Polyurethane Polyurethane
Cable Jacket Color Black Black
Conductor Style Stranded - 19 strands 32 AWG Stranded - 19 strands 32 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (20 AWG) 0.04 in 1.02 mm [1]
Insulation Material Over Conductor(s) FEP FEP
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Tinned Copper Tinned Copper
Drain Wire Material Tin Plated Copper Tin Plated Copper
Drain Wire Diameter (22 AWG) 0.025 in 0.64 mm
Filler Material Aramid Tie Cord Aramid Tie Cord
Bend Radius (minimum) 2.5 in 63.5 mm
Weight 0.67 oz/ft 61.85 gm/m

* All specifications are at room temperature unless otherwise specified.
