Model : 009M201 | Echo® Receiver Serial Cable

Call for lead time
$ 210.00 USD
(Pricing valid in US only!)

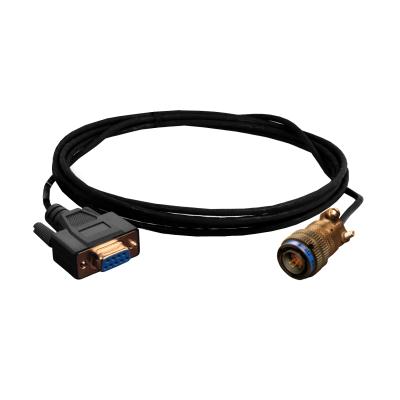

Echo® Receiver Serial Cable with 9-pin RS232 to 13 pin MIL connector

Model 009M201 is a special RS-232 serial cable with a DB9 connector to a MIL style bayonet connector that allows serial communication with Echo® Receivers. The cable’s MIL style connector mates with a MIL style connector on the receiver and is used to read and program the units.

  • Connection Type: Push-on with thumb screws
  • Cable Style: Multi Conductor - Shielded
  • Size - Length: 5.5 ft (1.7 m)
English: SI:
Performance
Number of Conductors 9 9
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Connector Model (Computer side) DB9 DB9
Connector Style (Computer side) Female Female
Connection Type (Computer side) Push-on with thumb screws Push-on with thumb screws
Connection Type (Receiver side) Bayonet Bayonet
Connector Model (Receiver side) MIL-DTL-3899911 MIL-DTL-3899911
Connector Style (Receiver side) Male Male
Physical
Size - Length 5.5 ft 1.7 m
Cable Jacket Diameter 0.196 in 5.0 mm
Cable Jacket Color Black Black
ROHS Compliant No No
* All specifications are at room temperature unless otherwise specified
.
