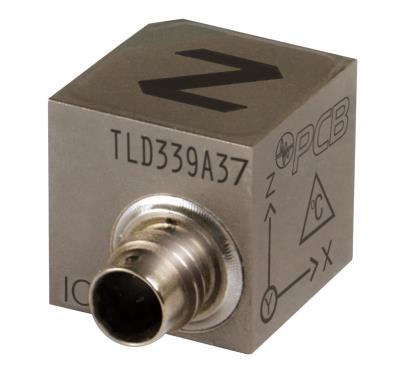

Model : TLD339A37 | Triaxial ICP® Accelerometer

Click for lead times
Lead Time for 1-5 is 12 Wks
Lead Time for 0-0 is 0 Wks

UHT-12™ shear triaxial ICP® accelerometer, 100 mV/g, 0.3 to 4k Hz, titanium housing, 1/4-28 4-pin, 5-40 stud mount, low temperature coefficient LTC, +356F temp rating, TEDS 1.0

  • Electrical Filter Corner Frequency: >15 kHz

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490.5 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

RELATED PRODUCTS



TLD339A37/NC

UHT-12™ shear triaxial ICP® accelerometer, 100 mV/g, 0.3 to 4k Hz, titanium housing, 1/4-28 4-pin, 5-40 stud mount, low temperature coefficient LTC, +356F temp rating, TEDS 1.0, no mating cable supplied



Add to Cart for Quote
Add To Cart
010S10

4-cond, shielded cable, FEP jacket, 10-ft, 1/4-28 4-socket plug for 200C to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC connector)



Add to Cart for Quote
Add To Cart
081A27

Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu



Add to Cart for Quote
Add To Cart
M081A27

Metric mtg stud, 5-40 to M3 x 0.50 long



Add to Cart for Quote
Add To Cart
080A145

Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/insulating hardcoat finish



Add to Cart for Quote
Add To Cart
039A10

Removal tool for 0.55-inch cube accelerometers



Add to Cart for Quote
Add To Quote
010P10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to pigtail (for use w/ 3711 series accels)



Add to Cart for Quote
Add To Cart
010D10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to 4-socket plug



Add to Cart for Quote
Add To Cart
010G10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add To Cart
034G10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add To Cart
010F10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) 10-32 plugs (labeled X,Y,Z)



Add to Cart for Quote
Add To Quote
034W10

4-conductor, shielded, lightweight, FEP cable, 10-ft, 4-socket plug, IP68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add To Cart
034F10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) 10-32 plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
036G10

4-conductor, silicone jacket cable, 10-ft, 4-pin plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
078G10

4-conductor, twisted shielded, Polyurethane cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add To Cart
078W10

4-conductor, shielded, flexible, Polyurethane cable, 10-ft, 4-socket plug, IP-68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490.5 m/s² pk
Frequency Range (±5 %) 0.3 to 4000 Hz 0.3 to 4000 Hz
Frequency Range (±10 %) 0.2 to 7000 Hz 0.2 to 7000 Hz
Resonant Frequency ≥35 kHz ≥35 kHz
Filter Type single pole single pole
Electrical Filter Roll-off 20 dB/decade 20 dB/decade
Electrical Filter Corner Frequency ≥15 kHz ≥15 kHz
Broadband Resolution (1) 0.002 g rms 0.019 m/s² rms [2]
Phase Response (±5 °) (at 70°F [21°C]) 3 to 2000 Hz 3 to 2000 Hz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
TEDS Compliant (Per IEEE 1451.4) Yes Yes
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range (Operating) -65 to 356 °F -54 to 180 °C
Temperature Response See Graph See Graph [2]
Temperature Coefficient of Sensitivity ≤0.011 %/°F ≤0.020 %/°C [2]
Base Strain Sensitivity .001 g/µε .0098 (m/s²)/µε [2]
Electrical
Excitation Voltage 21 to 30 VDC 21 to 30 VDC
Constant Current Excitation 2 to 4 mA 2 to 4 mA [3]
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant 2 to 6 sec 2 to 6 sec
Settling Time (within 10% of bias) <30 sec <30 sec
Spectral Noise (1 Hz) 210 µg/√Hz 2060 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 40 µg/√Hz 392 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 20 µg/√Hz 196 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 12 µg/√Hz 118 (µm/sec2)/√Hz [2]
Spectral Noise (10 kHz) 10 µg/√Hz 98 (µm/sec2)/√Hz [2]
Physical
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.37 oz 10.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 5-40 Female 5-40 Female
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Increased current up to 20mA acceptable to 250F (121C)
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A145 Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/insulating hardcoat finish 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081A27 Metric mtg stud, 5-40 to M3 x 0.50 long 1


Optional Versions


( TLB ) TEDS LMS International - Automotive Format
