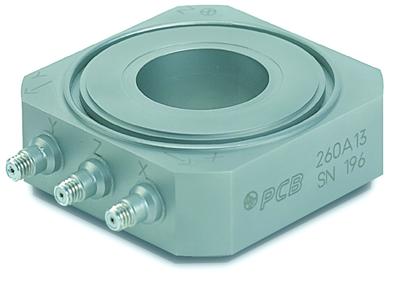

Model : 260A13 | Force Sensor, Charge Output, 3-Component

Call for lead time
Add to Cart for Quote

Triax force sensor, 10k lb (Fz), 4k lb (Fx,y), 15 pC/lb (z), 32 pC/lb (x, y)

  • Temperature Range: -100 to +350 °F (-73 to +177 °C)
  • Electrical Connector: 10-32 Coaxial Jack
English: SI:
Performance
Sensitivity (±15 %) (Z Axis) 15 pC/lb 3.37 pC/N [2]
Sensitivity (±15 %) (X or Y Axis) 32 pC/lb 7.19 pC/N [2]
Measurement Range (Z Axis) 10000 lb 44.48 kN
Measurement Range (X or Y Axis) 4000 lb 17.7 kN
Maximum Force (z axis) 11000 lb 48.93 kN
Maximum Force (x or y axis) 4400 lb 19.57 kN
Maximum Moment (z axis) 240 ft-lb 325.4 Nm
Maximum Moment (x or y axis) 325 ft-lb 440.7 Nm
Upper Frequency Limit 39000 Hz 39000 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between x and y axis) ±3 % ±3 %
Cross Talk (between (x or y axis) and z axis) ±5 % ±5 %
Environmental
Temperature Range -100 to +350 °F -73 to +177 °C
Electrical
Capacitance (all channels) 70 pF 70 pF [3]
Insulation Resistance (all channels) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (in direction of markings) Negative Negative
Physical
Preload ≤40000 lb ≤178 kN [4]
Stiffness (z axis) 38.8 lb/µin 6.8 kN/µm [3]
Stiffness (x or y axis) 11.4 lb/µin 2.0 kN/µm [3]
Size - Height 0.790 in 20.07 mm
Size - Length 2.25 in 57.1 mm
Size - Width 2.25 in 57.1 mm
Size - Bolt Diameter 1 in 25 mm
Size - ID 1.023 in 25.98 mm
Size - Sensing Surface 1.800 in 45.72 mm
Weight 9.88 oz 280 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector (Quantity, 3) 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Sensitivites are for listed preload. Sensitivites may vary ±5% depending on preload used.
[3] Typical.
[4] Preload should be at least 10 times the X and Y operating range used.


Accessories


Supplied
081A71 Pre-load bolt (for Models 260A03, 260A13, & 260A33) 1
082B06 Anti-friction washer (for Models 206C, 216B, 260A03, 260A13, & 260A33) 1
083A11 Pilot bushing (for Models 260A03, 260A13, & 260A33) 1
M081A71 Mounting stud, BeCu, M24 x 3-6g, (for Models M260A03, A13, and A33) 1


Optional Versions


( W ) Water Resistant Cable
English SI
Electrical Connection Position Side
