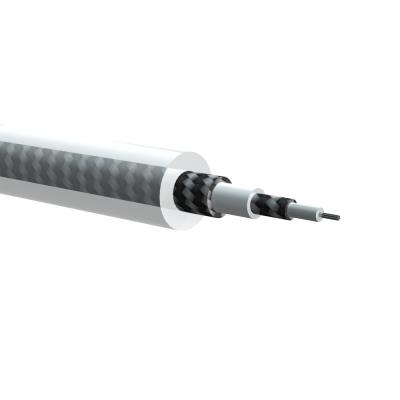

002 coaxial cable with tin plated copper braid & heat shrink tubing applied (price per foot)

RUGGED, COAX, WHT FEP CABLE (50FT MAX)

Model 005

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

002 coaxial cable with tin plated copper braid & heat shrink tubing applied (price per foot)

***Maximum cable length is 50ft (15m)***
  • Cable Style: Coaxial
  • Number of Conductors: 1
  • Cable Jacket Material: FEP
  • Temperature Range: -67 to 275 °F (-55 to 135 °C)

Specification Notes

[1] Typical.

English: SI:
Performance
Number of Conductors 1 1
Cable Style Coaxial Coaxial
Environmental
Temperature Range -67 to 275 °F -55 to 135 °C
Electrical
Impedance 50 Ohm 50 Ohm [1]
Capacitance (conductor to conductor @ 70 °F (21 °C)) 29 pF/ft 95 pF/m [1]
Physical
Cable Jacket Diameter .074 in 1.88 mm [1]
Cable Jacket Material FEP FEP
Cable Jacket Color White White
Protective Covering Diameter .200 in 5.08 mm [1]
Protective Covering Shrink Tube Over Steel Braid Shrink Tube Over Steel Braid
Conductor Style Stranded - 7 Strands 38 AWG Stranded - 7 Strands 38 AWG
Conductor Material Silver Plated Copper Covered Steel Silver Plated Copper Covered Steel
Conductor Diameter (30 AWG) .012 in .030 mm [1]
Insulation Material Over Conductor(s) Extruded TFE Extruded TFE
Shield Type Over Conductor(s) Braid: 95% Minimum Coverage Braid: 95% Minimum Coverage
Shield Material Over Conductor(s) Silver Plated Wire Silver Plated Wire
Shield Wire Diameter Over Conductor(s) (Each Strand 38 AWG) .050 in 1.27 mm [1]
Shield Type Over Bundle Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Bundle Tin Plated Copper Tin Plated Copper
Bend Radius (minimum) 2 in 50 mm
Weight .46 oz/ft 42.52 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
