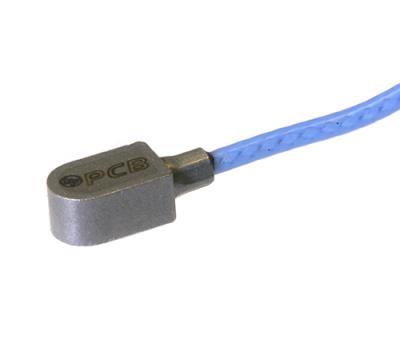

Model : 352A91 | ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 8 Wks
Lead Time for 11-20 is 9 Wks
$ 805.00 USD
(Pricing valid in US only!)

Miniature, Lightweight, High G ICP accel, 5000 g range, integral 3-ft mini low noise coaxial cable terminating in a 10-32 jack

  • Sensitivity: (±20%)1 mV/g (0.10 mV/(m/s²))
  • Measurement Range: ±5000 g pk (±49050 m/s² pk)
  • Broadband Resolution: 0.02 g rms (0.2 m/s² rms)
  • Frequency Range: (±5%)1.2 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.006 oz (0.17 gm)

RELATED PRODUCTS



002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add To Cart
003c10

Low-noise coaxial cable, blue TFE jacket, 10-ft, 10-32 coaxial plug to BNC plug



Add to Cart for Quote
Add To Cart
039A37

One-piece removal tool (for Model 352A91 & A92)



Add to Cart for Quote
Add To Cart
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add To Quote
480C02

Platinum Stock Products; 1-channel, battery-powered, ICP® sensor signal cond., unity gain, BNC input/output conn.



Add to Cart for Quote
Add To Cart
482C05

Platinum Stock Products; 4-channel, line-powered, ICP® sensor signal cond., unity gain, BNC input/output conn.



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±20 %) 1 mV/g 0.10 mV/(m/s²)
Measurement Range ±5000 g pk ±49050 m/s² pk
Frequency Range (±5 %) 1.2 to 10000 Hz 1.2 to 10000 Hz
Frequency Range (±10 %) 1 to 20000 Hz 1 to 20000 Hz
Resonant Frequency ≥100 kHz ≥100 kHz
Broadband Resolution (1) 0.02 g rms 0.2 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98100 m/s² pk
Temperature Range (Operating) -65 to +325 °F -54 to +163 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.4 to 1.2 sec 0.4 to 1.2 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 4.7 mg/√Hz 46 mm/s2/√Hz [2]
Spectral Noise (10 Hz) 1.2 mg/√Hz 11.8 mm/s2/√Hz [2]
Spectral Noise (100 Hz) 0.48 mg/√Hz 4.71 mm/s2/√Hz [2]
Spectral Noise (1 kHz) 0.17 mg/√Hz 1.67 mm/s2/√Hz [2]
Spectral Noise (10 kHz) 0.13 mg/√Hz 1.28 mm/s2/√Hz [2]
Physical
Weight 0.006 oz 0.17 gm [2] [3]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Epoxy Epoxy
Size - Height 0.100 in 2.54 mm
Size - Length 0.215 in 5.46 mm
Size - Width 0.135 in 3.43 mm
Electrical Connection Position Side Side
Cable Termination 10-32 Coaxial Jack 10-32 Coaxial Jack
Cable Length 3 ft 0.9 m
Cable Type 030 Coaxial 030 Coaxial
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Weight measured without cable
[4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
039A37 One-piece removal tool (for Model 352A91 & A92) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
