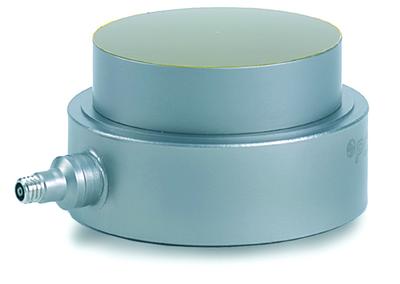

Model : 210B50 | Force Sensor, Charge Output

Click for lead times
Add to Cart for Quote

Impact force sensor, 50k lb comp., 18 pC/lb, charge output

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 30 Hz
  • Temperature Range: -300 to +400 °F (-184 to +204 °C)
  • Mounting Thread: 1/4-28 Female (1/4-28 Female)
  • Weight: 9.9 oz (280 gm)
English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) 50000 lb 222.4 kN
Maximum Static Force (Compression) 75000 lb 333.6 kN
Upper Frequency Limit 30 Hz 30 Hz [2] [3]
Non-Linearity ≤2 % FS ≤2 % FS [1]
Environmental
Temperature Range -300 to +400 °F -184 to +204 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance 125 pF 125 pF [4]
Insulation Resistance ≥1E12 Ohm ≥1E12 Ohm
Output Polarity Negative Negative
Physical
Stiffness 97 lb/µin 17 kN/µm [4]
Size - Diameter 2.125 in 53.9 mm
Size - Height 0.75 in 19 mm
Weight 9.9 oz 280 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 1/4-28 Female 1/4-28 Female
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Estimated using rigid body dynamics calculations.
[3] Low frequency response and system noise dependent on choice of external signal conditioning electronics.
[4] Typical.


Accessories


Supplied
080A81 Thread lock adhesive (for Series 200) 1
081A06 Mounting stud, 1/4-28 to 1/4-28 thds x 0.365", no shoulder 1
081B20 Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder 1
084A36 Impact cap, convex (for Model 200C50) 1


Optional Versions


( M ) Metric Mount
Accessories:
Supplied M081B21 Mounting stud, 1/4-28 to M6 x 0.75", BeCu, no shoulder 1
Supplied 080A81 Thread Locker 1
Supplied 081B20 Mounting Stud 1
Supplied 084A36 Impact cap, convex (for Model 200C50) 1


( P ) Positive Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Molded Integral Cable
Electrical Connection Position Side
