Model : 1404-13A | FATIGUE RATED LOW PROFILE LOAD CELL

Call for lead time
Add to Cart for Quote

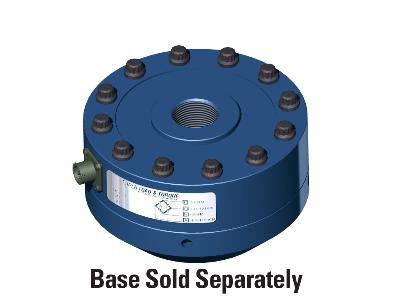

PCB L&T fatique rated low profile, load cell, 25k lbf rated capacity, 300% overload protection, 2.0 mv/v output, 1 1/4-12 UNF-2B thread PT20E-10-6P connector

  • Measurement Range: 25 klbf (111 kN)
  • Size - Diameter: 6.06 in (153.9 mm)
  • Size - Height: 3.50 in (88.9 mm)
  • Electrical Connector: PT02E-10-6P
English: SI:
Performance
Measurement Range (100 x 10^6 cycles) 25 klbf 111 kN [2] [4]
Sensitivity (±10 %) (RO) 2.0 mV/V 2.0 mV/V [1] [3]
Non-Linearity ≤0.05 % FS ≤0.05 % FS [2] [5]
Hysteresis ≤0.05 % FS ≤0.05 % FS [2] [5]
Non-Repeatability ≤0.01 %RO ≤0.01 %RO [3] [5]
Creep (in 20 minutes) 0.025 % 0.025 % [5]
Static Error Band ≤0.05 % FS ≤0.05 % FS [2] [5]
Eccentric Load Sensitivity 0.1 %/in 0.1 %/25.4mm [5]
Resonant Frequency 8 kHz 8 kHz
Side Load Sensitivity 0.1 %/in 0.1 %/25.4mm [5]
Environmental
Overload Limit 75 klbf 334 kN
Load Limit (Side Force, FX or FY) 50 klbf 222 kN [6]
Load Limit (Bending Moment, MX or MY) 50 klbf-in 5650 Nm [6]
Load Limit (Axial Torque, MZ) 50 klbf-in 5650 Nm [6]
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +15 to +115 °F -9 to +46 °C
Temperature Effect on Output (Maximum) ±0.0008 %Reading/°F ±0.0018 %Reading/°C [7]
Temperature Effect on Zero Balance (Maximum) ±0.0008 %FS/°F ±0.0018 %FS/°C [7]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [1]
Excitation Voltage (Recommended) 10 VDC 10 VDC [8]
Insulation Resistance >5K GOhm >5K GOhm
Zero Balance ±1 %RO ±1 % FS [3]
Output Polarity +Tension +Tension
Physical
Size - Height 3.50 in 88.9 mm [9]
Size - Diameter 6.06 in 153.9 mm [9]
Weight 21 lb 9.53 kg
Mounting Thread 1 1/4 - 12 UNF-3B No Metric Equivalent
Housing Material Painted Steel Painted Steel
Sensing Element Strain Gage Strain Gage
Mounting Torque 1400 lbf-in 158 Nm
Deflection at Full Scale Capacity 0.001 in 0.025 mm
Electrical Connector PT02E-10-6P PT02E-10-6P
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Nominal.
[2] FS - Full Scale.
[3] RO - Rated Output.
[4] Calibrated in tension and compression.
[5] Performance specifications guaranteed with factory installed optional Tension Base 084A101
[6] Singularly applied, i.e. no other extraneous loads.
[7] Over compensated operating temperature range.
[1] Nominal.
[3] RO - Rated Output.
[8] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[9] See Outline Drawing 49932 for Complete Dimensions


Accessories


Optional
084A101 Tension Load Base w/ 11/4-12 1
084A56 Load cell thread pre-tensioner 1 1/4-12 1
084A90 Connector Protector, 1200 & 1400 Series 1
181-012A Mating conn., 6-socket (F) w/strain relief for sensors with PT conn. 1
8311-01-10A Cable assembly for sensors with PT conn., 10-ft, PT conn. to pigtails, 4-cond. cable 1
