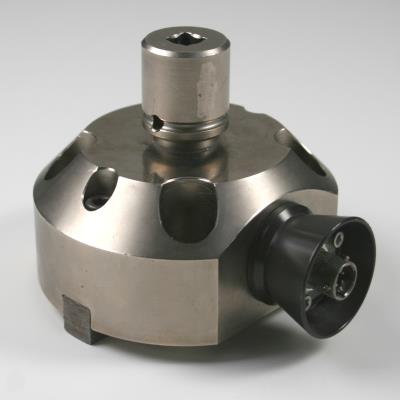

stationary torque transducer, 50 ft-lb (68 nm), 3/8-inch square drive, 4-pin pt receptacle

STAT TORQ, 50 FT-LB, 3/8-IN SQ DR

Model 077037-00051

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

Stationary Torque Transducer, 50 ft-lb (68 Nm), 3/8-inch Square Drive, 4-pin PT Receptacle

For more information on RS Technologies Fastener Assembly products and applications, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-assembly

To view the RS Technologies Assembly Product Catalog, please visit:
https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Assemby_Lowres.pdf

Measurement Range: 50 lbf-ft (68 Nm)
Sensitivity: (output at rated capacity)2 mV/V
Size - Diameter: 4.0 in (101.6 mm)
Size - Height: 1.75 in (44.5 mm)

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] Matched for mV/V and shunt calibration.
[4] See Drawing 66209 for Complete Dimensions
[5] 2 mV/V with 43.575 kOhm precision resistor.
[4] See Drawing 66209 for Complete Dimensions

	English:	SI:
Performance
Measurement Range (Full Scale Capacity)	50 lbf-ft	68 Nm
Sensitivity (output at rated capacity ) (0.25%FS)	2 mV/V	2 mV/V	[1]
Non-Linearity	≤0.25 % FS	≤0.25 % FS	[2]
Hysteresis	≤0.25 % FS	≤0.25 % FS	[2]
Interchangeabilty	≤0.30 % FS	≤0.30 % FS	[3]
Overload Capacity	150 %F.S.	150 %F.S.
Drive Size	3/8 inch Square	3/8 inch Square	[4]
Environmental
Temperature Range (Operating)	0 to +200 °F	-18 to +93 °C
Temperature Range (Compensated)	+70 to +150 °F	+21 to +66 °C
Temperature Effect on Output (Maximum)	±0.01 %RO/°F	±0.018 %RO/°C
Temperature Effect on Zero Balance (Maximum)	±0.01 %FS/°F	±0.018 %FS/°C
Electrical
Bridge Resistance	350 Ohm	350 Ohm
Excitation Voltage (Recommended)	10 VDC or VAC rms	10 VDC or VAC rms
Zero Balance	≤2 % FS	≤2 % FS
Shunt Calibration	2 mV/V	2 mV/V	[5]
Physical
Size - Height	1.75 in	44.5 mm	[4]
Size - Diameter	4.0 in	101.6 mm	[4]
Weight	4.9 lb	2.2 kg
Mating Connector	PT06A-8-4S	PT06A-8-4S
Connector	DT02H-8-4P	DT02H-8-4P

* All specifications are at room temperature unless otherwise specified.

Accessories


Optional
080920-01000	Model 920 Portable Digital Peak Meter for torque, torque-angle or load measurement; Click-Wrench calc feature, w/battery charger, instruction manual & shoulder strap	1
097000-34149	Cable, RS Instrument to 4-pin Transducers	1
4242R-000600		1
Supplied
7122R-04352A	Precision Cal Resistor 43.575K Ohm	1
