Model : HT602D11 | Industrial ICP® Accelerometer

Click for lead times
$ 380.00 USD
(Pricing valid in US only!)

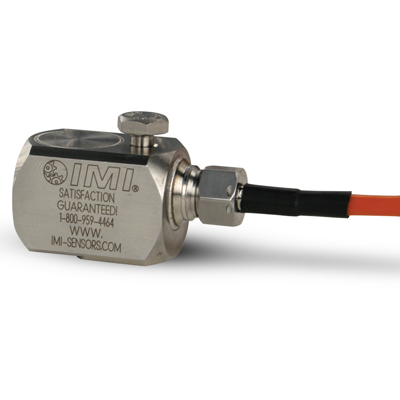

High temperature, low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.8 to 8000 Hz, side exit, integral cable, single point ISO 17025 accredited calibration

Capable of withstanding continuous temperatures of 325 °F (162 °C) without decay in performance, higher than any other IEPE accelerometer in the industry.

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)48 to 480000 cpm (0.8 to 8000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 5.4 oz (153 gm)
Additional Configurations:
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±3 dB) 48 to 480000 cpm 0.8 to 8000 Hz [2] [4]
Resonant Frequency 1500 kcpm 25 kHz [5]
Broadband Resolution (1) 150 µg 1472 µm/sec2 [5]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to 325 °F -54 to 162 °C
Temperature Response See Graph %/°F See Graph %/°F [5]
Enclosure Rating IP67 IP67
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 9.0 µg/√Hz 88.3 (µm/sec2)/√Hz [5]
Spectral Noise (100 Hz) 4.0 µg/√Hz 39.2 (µm/sec2)/√Hz [5]
Spectral Noise (1 kHz) 2.0 µg/√Hz 19.6 (µm/sec2)/√Hz [5]
Electrical Isolation >100000000 Ohm >100000000 Ohm
Physical
Size - Length 2.1 in 53.3 mm
Size - Width 1.0 in 25.4 mm
Size - Height 1.0 in 25.4 mm
Weight (without cable) 5.4 oz 153 gm
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination Blunt cut Blunt cut
Electrical Connections (White ) Signal / Power Signal / Power
Electrical Connections (Black ) Ground Ground
Cable Length 10 ft 3.0 m
Cable Type 055 2-cond shielded with FEP jacket 055 2-cond shielded with FEP jacket
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical.
[6] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
081A73 1/4-28 x 1.34" hex head captive thru bolt 1


Optional Versions


( M ) Metric Mount
Accessories:
Supplied M081A73 Captive Mounting Bolt 1
