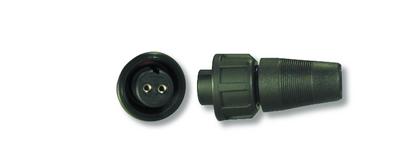

Model : BR | Cable Connector

Call for lead time

2-socket, molded composite connector (MIL-C-5015 compatible) - *Molded connector, not for individual sale

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -320 to +250 °F (-196 to +121 °C)

RELATED PRODUCTS



042

Polyurethane cable, 2-conductor, twisted pair, shielded



Add to Cart for Quote
Add To Cart
047

Armor jacketed polyurethane cable, 2-conductor, twisted pair w/drain, shielded



Add to Cart for Quote
Add To Cart
048

High temperature armor jacketed FEP cable, 2-conductor, twisted pair w/drain, shielded



Add to Cart for Quote
Add To Cart
051

PVC coaxial cable (RG58U)



Add to Cart for Quote
Add To Quote
052

Polyurethane cable, 2-conductor twisted pair w/drain, shielded



Add to Cart for Quote
Add To Cart
053

High temperature FEP cable, 2-conductor twisted pair w/drain, shielded



Add to Cart for Quote
Add To Cart
055

High temperature FEP cable, 2-conductor twisted pair, shielded



Add to Cart for Quote
Add To Cart
fv

2-socket MS3106 connector with environmental boot (meets MIL-C-5015)**Self-assembly requires the use of 0.25” (6.35mm) cable**



Add to Cart for Quote
Add To Cart
am

2-socket MS3106A connector (meets MIL-C-5015)



Add to Cart for Quote
Add To Cart
ap

2-socket MS3106 connector w/strain relief (meets MIL-C-5015)



Add to Cart for Quote
Add To Cart
bp

2-socket, high temperature MS3106 connector w/strain relief (meets MIL-C-5015)



Add to Cart for Quote
Add To Cart
lq

2-socket MIL with ext strain relief



Add to Cart for Quote
Add To Cart
bq

2-socket, molded composite, right angle connector (MIL-C-5015 compatible) - *Molded connector, not for individual sale



Add to Cart for Quote
Add To Cart
bs

2-socket modified MS3106 connector for right angle use (MIL-C-5015 compatible)



Add to Cart for Quote
Add To Cart
cf

Field installable 2-socket molded composite connector w/strain relief (MIL-C-5015 compatible)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -320 to +250 °F -196 to +121 °C
Physical
Size - OD 0.825 in 20.955 mm
Size - Length 1.73 in 43.94 mm
Weight 0.39 oz 11.04 gm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes




Product Documents
