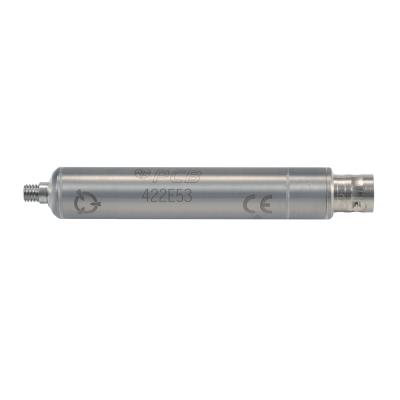

Model : 422E53 | IN-Line Charge Converter

Click for lead times
Lead Time for 1-5 is 2 Wks
Lead Time for 6-10 is 3 Wks
$ 315.00 USD
(Pricing valid in US only!)

In-line charge converter, 1 mV/pC, +/-5V output, -5% frequency 5 Hz

  • Sensitivity: (±2.5%)1 mV/pC
  • Output Voltage: ±5.0 V
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Housing Material: Stainless Steel
English: SI:
Performance
Sensitivity (±2.5 %) (Charge Conversion) 1 mV/pC 1 mV/pC
Input Range ±5000 pC ±5000 pC
Overrange ±8 V ±8 V
Low Frequency Response (-5 %) 5 Hz 5 Hz
High Frequency Response (-5 %) 100 kHz 100 kHz [1]
Non-Linearity 1.0 % FS 1.0 % FS
Environmental
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Maximum Shock 5000 g pk 49050 m/s² pk
Maximum Vibration (5) 100 g pk 981 m/s² pk
Electrical
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Voltage ±5.0 V ±5.0 V
Output Impedance 100 Ohm 100 Ohm
Output Bias Voltage 9 to 13 VDC 9 to 13 VDC
Maximum Input Voltage 40 V 40 V
Broadband Electrical Noise (1 to 10000 Hz) 33 µV -90 dB [2]
Spectral Noise (1 Hz) 9.8 µV/√Hz -100 dB [2]
Spectral Noise (10 Hz) 3 µV/√Hz -110 dB [2]
Spectral Noise (100 Hz) 0.8 µV/√Hz -122 dB [2]
Spectral Noise (1 kHz) 0.4 µV/√Hz -128 dB [2]
Spectral Noise (10 kHz) 0.2 µV/√Hz -134 dB [2]
Capacitance (Feedback) 1000 pF 1000 pF
Overload Recovery Time 10 µsec 10 µsec
Discharge Time Constant >0.1 sec >0.1 sec
Resistance (Feedback) 15000000000 Ohm 15000000000 Ohm [3]
Source Capacitance Loading 0.0005 %/pF 0.0005 %/pF
Physical
Housing Material Stainless Steel Stainless Steel
Sealing Epoxy Epoxy
Electrical Connector (Input) 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connector (Output) BNC Jack BNC Jack
Size - Diameter 0.52 in 13 mm
Size - Length 3.4 in 86 mm
Weight 1.15 oz 32.7 gm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] High frequency response may be limited by supply current and output cable length.
[2] Tested using voltage source and input capacitor equal to the feedback capacitor, to simulate a charge output sensor.
[3] Effective feedback resistance for time constant is 3 times tested value due to circuitry (i.e 1x10E9 = 3x10E9 ohm)
[4] See PCB Declaration of Conformance PS024 for details. A low impendance connection from case to earth ground is required to maintain CE compliance.
