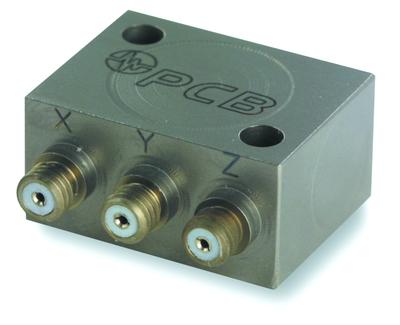

Model : 356A71 | Triaxial Charge Output Accelerometer

Click for lead times
Lead Time for 1-5 is 12 Wks
Lead Time for 6-10 is 14 Wks
Add to Cart for Quote

Triaxial, miniature (23 gm) charge output accel., 10 pC/g, 5k Hz, (3) 10-32 conn.

  • Sensitivity: (±30%)10 pC/g (1.02 pC/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (+5%)5 kHz (5000 Hz)
  • Temperature Range: -95 to +490 °F (-70 to +254 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.8 oz (22.7 gm)
English: SI:
Performance
Sensitivity (±30 %) 10 pC/g 1.02 pC/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (+5 %) 5 kHz 5000 Hz [2]
Frequency Range (+10 %) 7 kHz 7000 Hz [2]
Resonant Frequency ≥25 kHz ≥25 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range -95 to +490 °F -70 to +254 °C
Temperature Response See Graph %/°F See Graph %/°F [3]
Electrical
Capacitance 690 pF 690 pF [3]
Insulation Resistance (at 70 °F [21 °C]) >1000000000000 Ohm >1000000000000 Ohm
Insulation Resistance (at 490 °F [254 °C]) >100000000 Ohm >100000000 Ohm [3]
Output Polarity Negative Negative
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Length 0.96 in 24.4 mm
Size - Width 1.00 in 25.4 mm
Size - Height 0.50 in 12.7 mm
Weight 0.8 oz 22.7 gm [3]
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Mounting Through Hole Through Hole
Mounting Torque 8 to 10 in-lb 90 to 113 N-cm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.


Accessories


Supplied
039A22 Allen wrench, 7/64" hex head (for use with 6-32 thd cap screws) 1
080A170 Adhesive mtg base (for Model 356A71) 1 inch hex x 0.35 in thick, 1/4-28 thread in base x 0.2 in with 2 x 6-32 holes thru 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
081A94 Mounting screw, 6-32 UNC, 0.75" long 2


Optional Versions


( M ) Metric Mount
Accessories:
Supplied M080A170 Adhesive mounting base 1
Supplied M081A94 Mounting Stud, M3 X 0.50 X 20mm 2
Supplied M039A22 Allen wrench for use with M3 thread 1


( P ) Positive Output Polarity
