charge output pressure sensor with uht-12™ element, 7.0 pc/psi, single ended with a 10-32 connector. iecex hazardous approved.

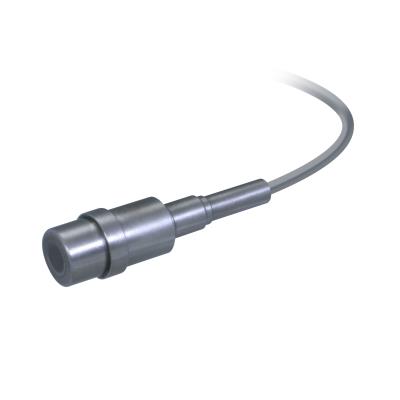

CHARGE OUTPUT PRESSURE SENSOR

Model 176A07

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
1 Call for Lead Time
  • CE
  • IP

Charge output pressure sensor with UHT-12™ element, 7.0 pC/psi, single ended with a 10-32 connector. IECEx hazardous approved.


  • Measurement Range: 725 psi (50 bar)
  • Sensing Element: UHT-12™
  • Temperature Range: -94 to 1,200 °F (-70 to 650 °C)
  • Weight: 2.0 oz (57 gm)

Specification Notes

[1] Upper frequency response is calculated from Resonant Frequency.
[2] Zero-based, least-squares line method.
[3] Typical.
[4] Maximum.
[5] Half-sine pulse duration, 1 msec
[3] Typical.
[6] See PCB Declaration of Conformance PS058 for details.

English: SI:
Performance
Sensitivity (+/-20 %) 7 pC/psi 101.5 pC/bar
Sensitivity (+/-20 %) 7 pC/psi 101.5 pC/bar
Measurement Range 725 psi 50 bar
Maximum Pressure (Total) 4000 psi 275.8 bar
Resonant Frequency ≥100 kHz ≥100 kHz
Transverse Resonance >15 kHz >15 kHz
Frequency Response (±5.0 %) 20000 Hz 20000 Hz [1]
Non-Linearity ≤1 % FS ≤1 % FS [2]
Environmental
Maximum Shock (Axial) 2000 g pk 19600 m/s² pk [5]
Acceleration Sensitivity 0.01 psi/g 0.0069 bar/g [4]
Acceleration Sensitivity 0.004 psi/g 0.00028 bar/g [3]
Temperature Range (Continuous) -94 to 1,200 °F -70 to 650 °C
Temperature Range (Receptacle) -76 to 900 °F -60 to 483 °C
Temperature Response See Graph See Graph [3]
Radiation Exposure Limit (Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1E8 rad 1E8 rad
Electrical
Output Polarity (Positive Pressure) Positive Positive
Capacitance (with cable) 250 pF 250 pF [3]
Insulation Resistance (Room Temp) ≥1000000000000 Ohm ≥1000000000000 Ohm
Case Isolation (Room Temp) ≥1000000000000 Ohm ≥1000000000000 Ohm
Insulation Resistance (1200°F / 650°C) ≥50 kohm ≥50 kohm
Case Isolation (1200°F / 650°C) ≥50 kohm ≥50 kohm
Physical
Sensing Element UHT-12™ UHT-12™
Sensing Geometry Compression Compression
Housing Material Nickel Alloy Nickel Alloy
Sealing Welded Hermetic Welded Hermetic
Cable Type Hardline Hardline
Cable Length 3.0 ft 0.91 m
Weight (with cable) 2.0 oz 57 gm [3]

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
060A25 Clamp nut, SS 9/16-18 9/16" hex 1
40890-04 3
