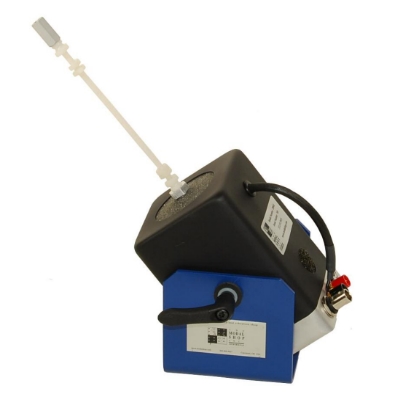

| Performance |
| Output Force, sine pk (Natural Air Cooling) |
7 lbf |
31 N |
|
| Output Force, random RMS (Natural Air Cooling) |
5 lbf |
22 N |
|
| Output Force, shock pk |
15 lbf |
67 N |
|
| Stroke Length (Continuous pk-pk) |
.5 in |
13 mm |
|
| Stroke Length (Between Stops) |
.55 in |
14 mm |
|
| Frequency Range |
9 kHz |
9 kHz |
|
| Acceleration (No Load) |
70 g pk |
70 g pk |
[1]
[2]
|
| Acceleration (0.1 lb (0.045 kg) load) |
35 g pk |
35 g pk |
[1]
[2]
|
| Acceleration (1 lb (0.454 kg) load) |
6.4 g pk |
6.4 g pk |
[1]
[2]
|
| Acceleration (2 lb (0.907 kg) load) |
3.3 g pk |
3.3 g pk |
[1]
[2]
|
| Maximum Current |
8 A |
8 A |
|
| DC Resistance, armature |
.37 Ohms |
.37 Ohms |
|
| Amplifier Performance |
| Amplifier Efficiency |
92 % |
92 % |
|
| Input Voltage, RMS (Nominal) |
0-1 VAC |
0-1 VAC |
[3]
|
| Input Voltage, RMS (Maximum) |
1.9 VAC |
1.9 VAC |
|
| Input Power |
12-21 VDC |
12-21 VDC |
[4]
|
| Output Power |
55 W |
55 W |
[5]
|
| Distortion, typical |
<0.02 % |
<0.02 % |
[6]
|
| Cooling |
Convection |
Convection |
|
| Discrete Gain Stages |
Muted,10dB,18dB,24dB |
Muted,10dB,18dB,24dB |
|
| Warning Indication |
Clipping and over temperature |
Clipping and over temperature |
[7]
|
| Shutdown Protection |
Over temperature and over current |
Over temperature and over current |
[7]
|
| Physical |
| Armature Weight |
.1 lb |
.045 kg |
|
| Suspension Stiffness |
15 lbf-in |
2.63 N/mm |
|
| Size - Height |
5.3 in |
135 mm |
|
| Size - Width |
6.75 in |
171 mm |
|
| Size - Depth |
3.5 in |
89 mm |
|
| Weight |
7 lb |
3.1 kg |
|
| Input Connector |
BNC Jack |
BNC Jack |
|
| Output Connector Type |
Mini binding post |
Mini binding post |
|
| Table Mounting |
10-32 thread |
10-32 thread |
|
